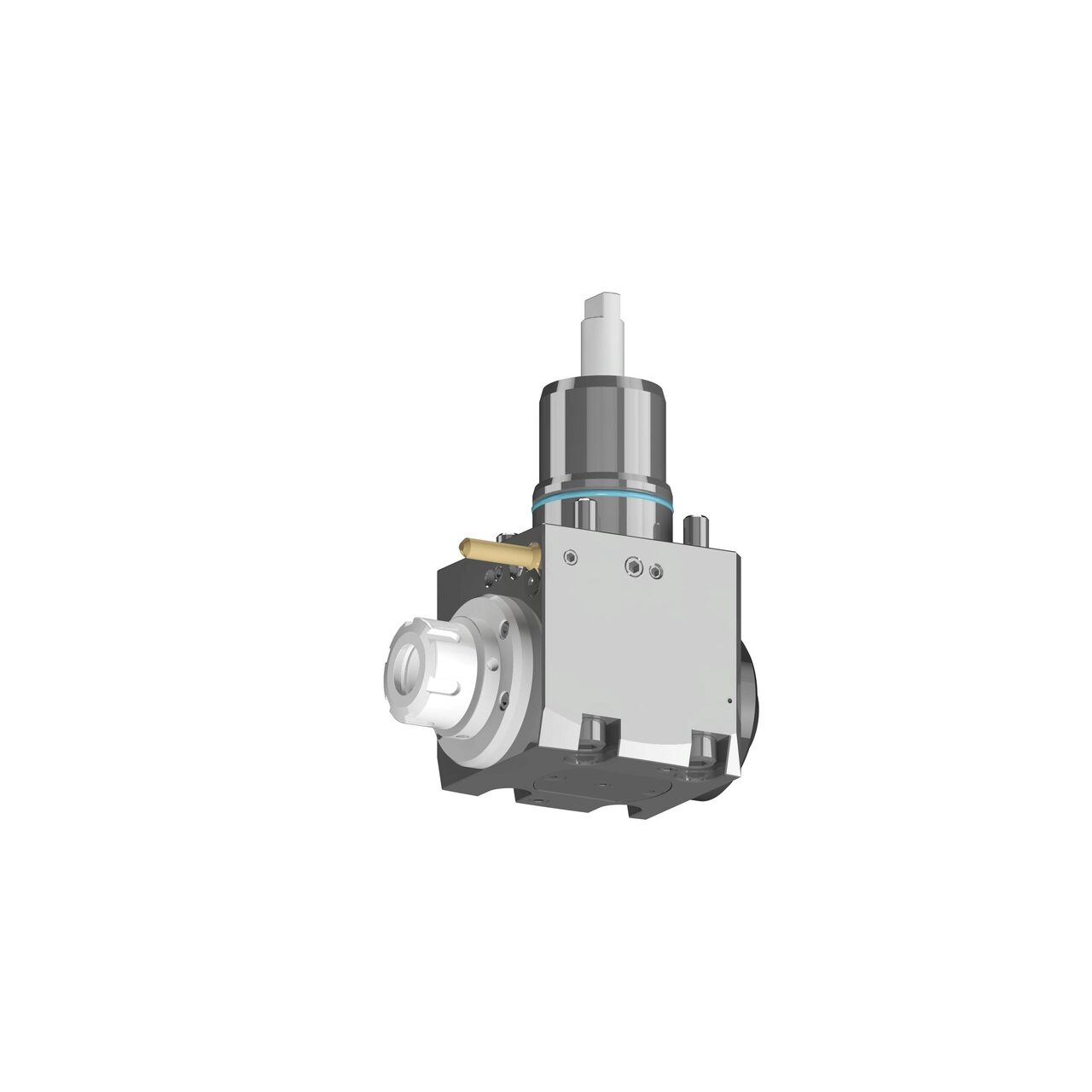

BMT 55, ANGULAR tool holder, with 80bar internal cooling NAKAMURA
Delivery terms
ex-works Deva (Romania)
BMT 55, ANGULAR tool holder, with 80bar internal cooling NAKAMURA
| PRODUCT CODE |
NGT2-55/201-25/3.3-55(NT)
|
| Status under request |
under request
|

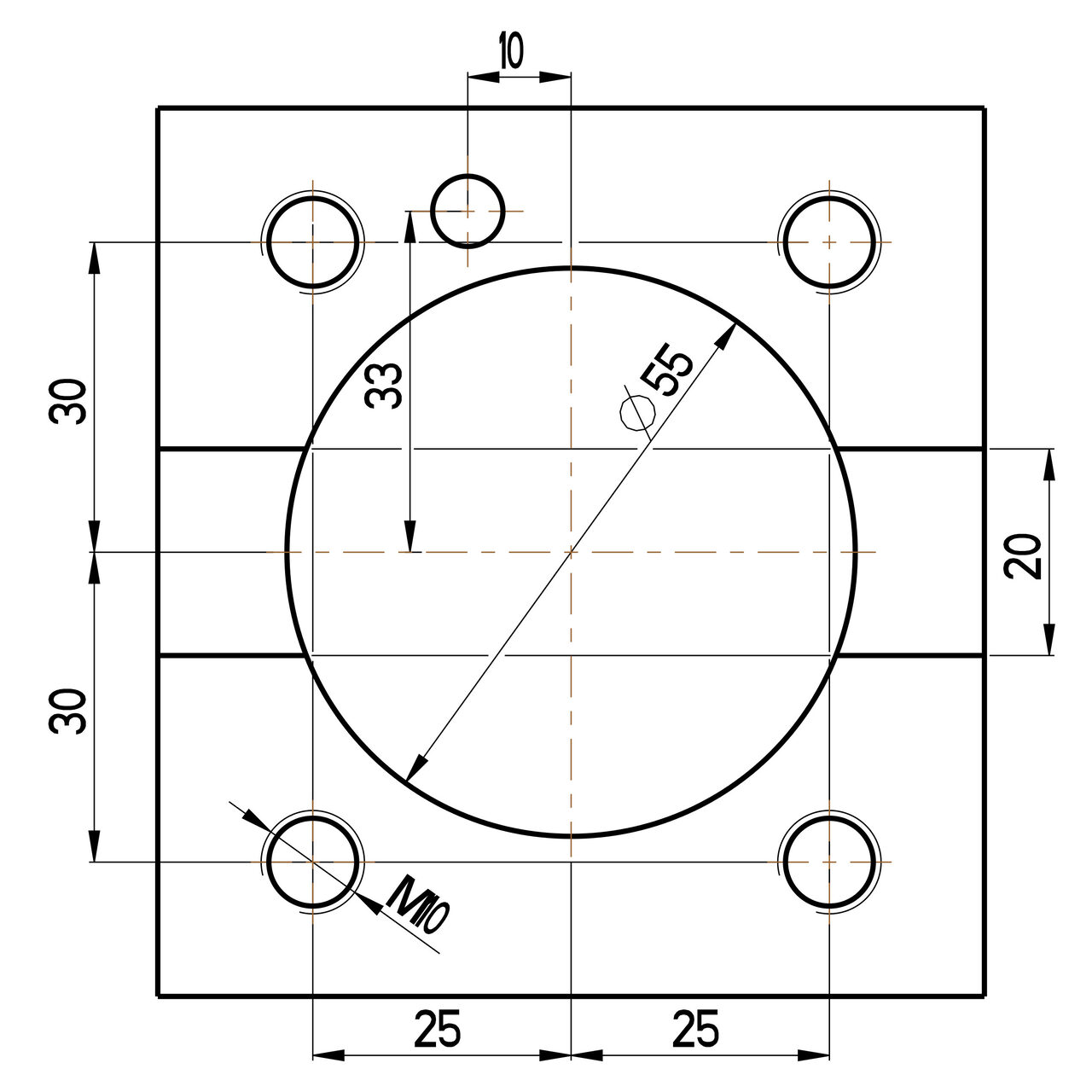

| TURRET INTERFACE TYPE |
BMT
|
| SHANK SIZE [mm] |
55
|

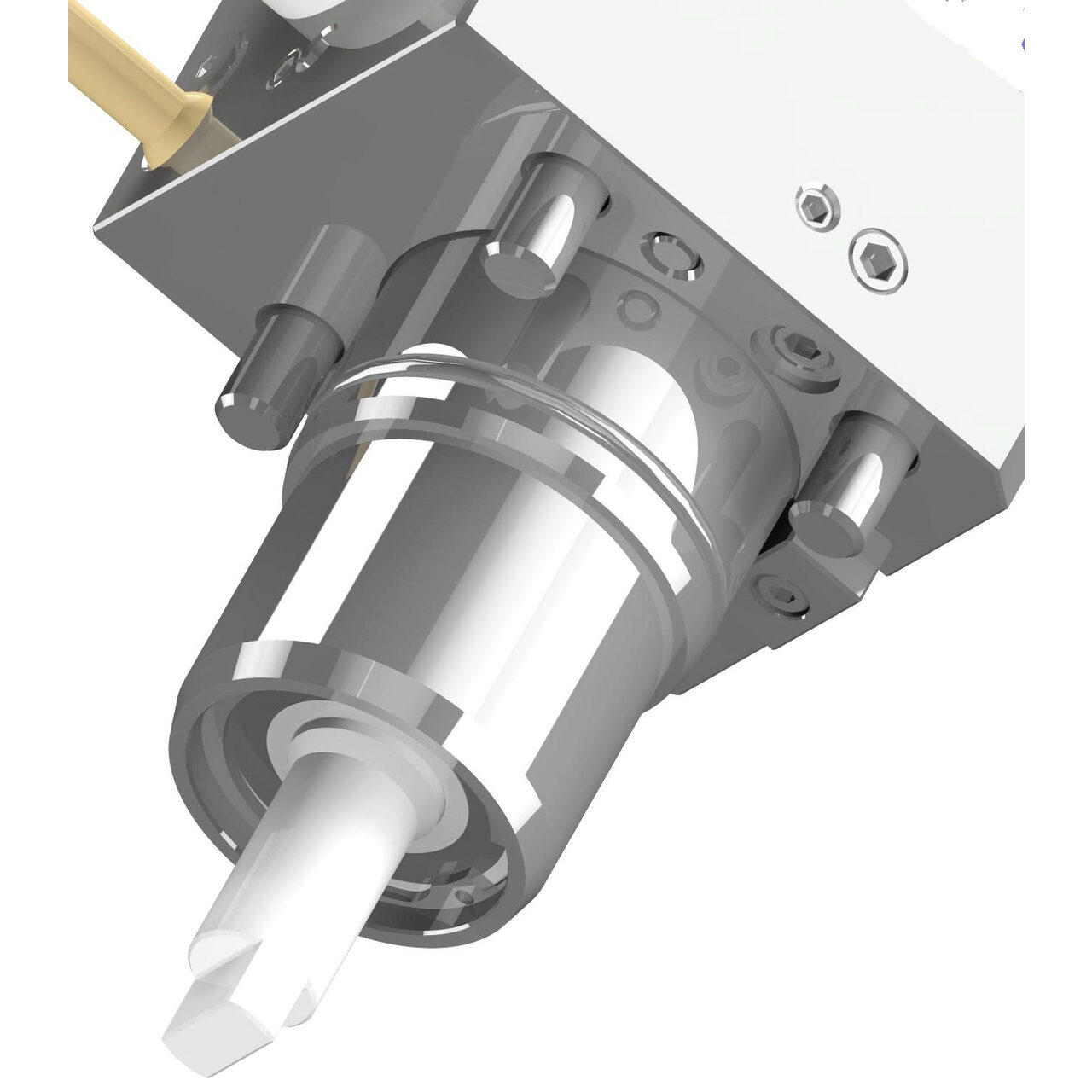

| DRIVE COUPLING TYPE |
FLAT(~DIN 1809)
|
| BEARING TYPE |
High Speed Ball Spindle
|
| PRODUCT TYPE |
ANGULAR
|
| COOLANT |
Internal 80bar
|
| TOOL GRIP DIMENSION |
Collet ER25
|
| TOOL GRIP TYPE |
COLLET
|
| TRANSMISSION RATIO [i=n1:n2] |
1:1
|
| TORQUE [Nm] |
28
|
| HEIGHT [mm] |
55
|
| Direction |
LEFT-RIGHT HAND
|
| Compatible machines |
CMZ > TA 15-30, TD 15-55 M/MS/Y/YS (15 ST)
CMZ > TA Z400, 640, 1100 (15 ST)
CMZ > TTL 52/66
CMZ > TX 52/66
Eurotech > TA 15-30, TD 15-55 M/MS/Y/YS (15 ST)
Eurotech > TTL 52/66
Muratec > MT 100B
Nakamura-Tome > AS-200
Nakamura-Tome > NTJ
Nakamura-Tome > NTM3
Nakamura-Tome > SC-150 M
Nakamura-Tome > SC-200 M
Nakamura-Tome > SC-250 M
Nakamura-Tome > Super NTJ
Nakamura-Tome > TW-10
Nakamura-Tome > TW-20 (16 ST)
Nakamura-Tome > WT-150
Nakamura-Tome > WT-20-II M/MY
Nakamura-Tome > WT-250
Nakamura-Tome > WTS-150
Nakamura-Tome > WTW-150
Nakamura-Tome > WY-250
|
