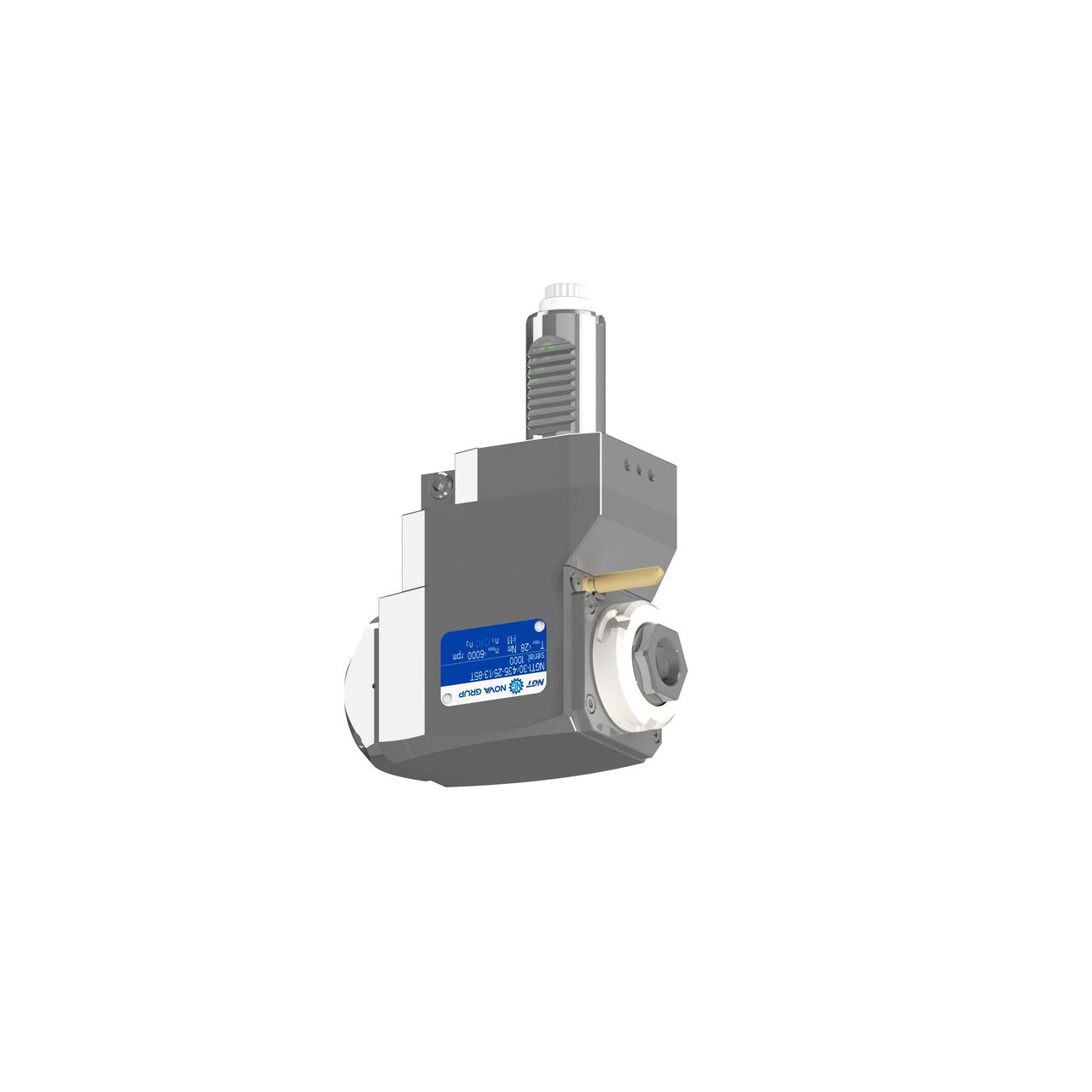

VDI 30. angular&offset tool holder. coupling DIN 5480 Sauter synchron . no internal cooling. with tapered roller bearings
Product details
Product Code: NGT1-30/435-25/1.3-85T
Delivery terms
ex-works Deva (Romania)
VDI 30, angular&offset tool holder, coupling DIN 5480, no internal cooling with Tapered roller bearings
| Status under request |
DA
|
| PRODUCT CODE |
NGT1-30/435-25/1.3-85T
|
| NEW PRODUCTS |
EXTREME LIVE TOOLHOLDERS
|
| TYPE OF TOOL HOLDER |
LIVE TOOLS
|
| TURRET INTERFACE TYPE |
VDI
|
| SHANK SIZE [MM] |
30
|
| DRIVE COUPLING TYPE |
DIN 5480
|
| BEARING TYPE |
Tapered roller bearings
|
| PRODUCT TYPE |
OFFSET ANGULAR
|
| DIRECTION |
LEFT-RIGHT HAND
|
| HEIGHT [MM] |
85
|
| COOLANT |
External Coolant
|
| TOOL GRIP TYPE |
ER Collet
|
| TOOL GRIP DIMENSION |
Collet ERA25
|
| TRANSMISSION RATIO [I=N1:N2] |
1:1
|
| TORQUE [NM] |
28
|
| Compatible machines |
DMG MORI / GILDEMEISTER > CLX 350 V1/V3/V4 (STAR)
SCHERER FEINBAU > VDZ120 L SCHAFT30 (STAR. VERTICAL)
SCHUSTER > VTM350 FUTURE LINE (STAR. VERTICAL)
HURCO > TMM8 (STAR)
SCHERER FEINBAU > VDZ120 R SCHAFT30 (STAR. VERTICAL)
|
