VDI 30, angular tool holder, coupling DIN 5480, no internal cooling
Product details
Product code: NGT1-30/231-25/1.1-55
Delivery terms
ex-works Deva (Romania)

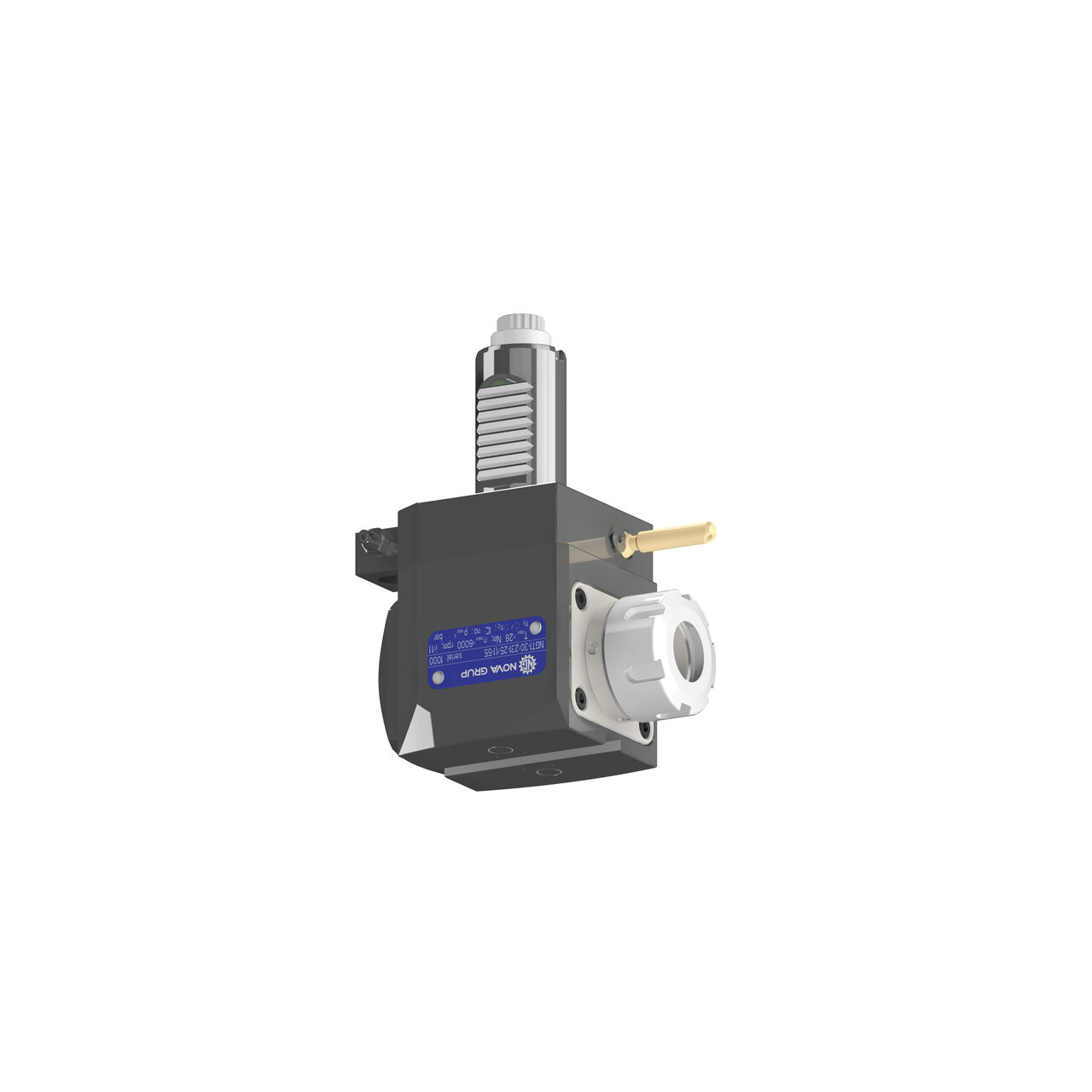

VDI 30, angular tool holder, coupling DIN 5480, no internal cooling
| PRODUCT CODE |
NGT1-30/231-25/1.1-55
|
| TURRET INTERFACE TYPE |
VDI
|
| SHANK SIZE [mm] |
30
|
| DRIVE COUPLING TYPE |
DIN 5480
|
| BEARING TYPE |
High Speed Ball Spindle
|
| PRODUCT TYPE |
ANGULAR
|
| COOLANT |
External Coolant
|
| TOOL GRIP DIMENSION |
Collet ER25
|
| TOOL GRIP TYPE |
COLLET
|
| TRANSMISSION RATIO [i=n1:n2] |
1:1
|
| TYPE OF TOOL HOLDER |
LIVE TOOLS
|
| TORQUE [Nm] |
28
|
| HEIGHT [mm] |
55
|
| Direction |
RIGHT HAND
|
| Compatible machines |
AKIRA SEIKI > SL 25-MC (DISC)
DMG MORI / Gildemeister > CLX 350 V1/V3/V4 (STAR)
DMG MORI / Gildemeister > CTX 210 (DISC)
DMG MORI / Gildemeister > CTX 310 (DISC)
DMG MORI / Gildemeister > CTX 310 eco DIN5480 (DISC)
DMG MORI / Gildemeister > CTX 320 Schaft 30 (DISC)
DMG MORI / Gildemeister > CTX 320 V1-V3 (DISC)
DMG MORI / Gildemeister > CTX 320 V4-V6 (DISC)
DMG MORI / Gildemeister > CTX 410 Schaft 30 (DISC)
DMG MORI / Gildemeister > CTX alpha 300 (DISC)
DMG MORI / Gildemeister > CTX alpha 500 (DISC)
DMG MORI / Gildemeister > CTX beta 1250 VDI30 (DISC)
DMG MORI / Gildemeister > CTX beta 500 VDI30 (DISC)
DMG MORI / Gildemeister > CTX beta 800 VDI30 (DISC)
DMG MORI / Gildemeister > ecoTURN 310 (DISC)
DMG MORI / Gildemeister > NEF 400 (DISC)
Duplomatic > VDI30 5480 (DISC)
EMCO > 345 new (DISC)
EMCO > Concept turn 450/460 (DISC)
EMCO > E45 (DISC)
EMCO > E65 (DISC)
Hardinge > GS150M VDI30 (DISC)
Hardinge > GS200M VDI30 (DISC)
Hardinge > Talent 6/45 + 8/52 (DISC)
Hardinge > Talent VDI30 new (DISC)
HURCO > TMM8 (STAR)
KUEN JENG > KL-645 (DISC)
Magdeburger > MV100 (DISC)
Mori Seiki > Dura turn 310Eco (DISC)
Sauter > VDI30 5480 (DISC)
Scherer Feinbau > VDZ120 R Schaft30 (STAR, VERTICAL)
UVA > T44 (DISC)
UVA > T51 (DISC)
|
