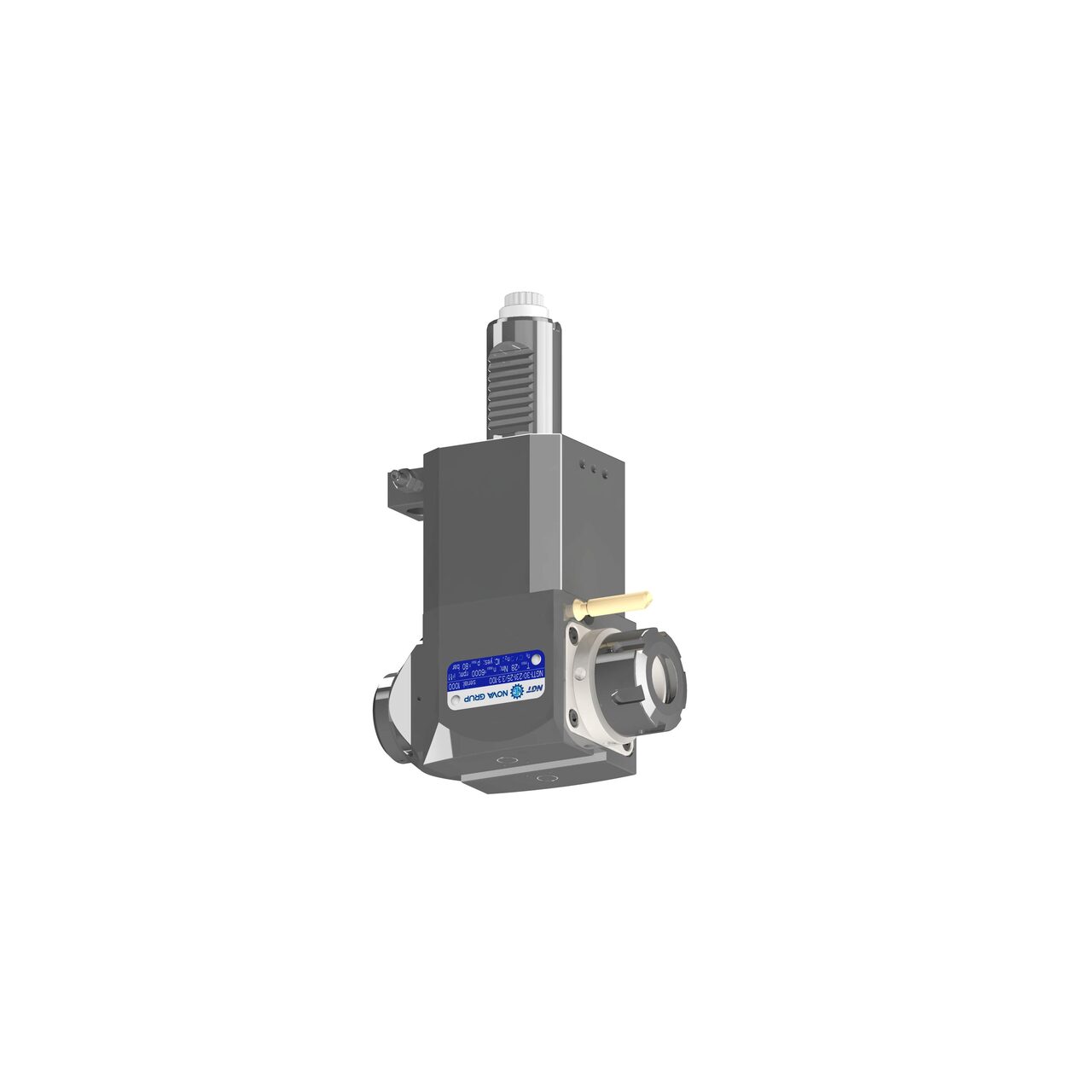

VDI 30, angular tool holder, coupling DIN 5480, with 80bar internal cooling
Delivery terms
ex-works Deva (Romania)
VDI 30, angular tool holder, coupling DIN 5480, with 80bar internal cooling
| PRODUCT CODE |
NGT1-30/231-25/3.3-100
|
| TURRET INTERFACE TYPE |
VDI
|
| SHANK SIZE [mm] |
30
|
| DRIVE COUPLING TYPE |
DIN 5480
|
| BEARING TYPE |
High Speed Ball Spindle
|
| PRODUCT TYPE |
ANGULAR
|
| COOLANT |
Internal 80bar
|
| TOOL GRIP DIMENSION |
Collet ER25
|
| TOOL GRIP TYPE |
COLLET
|
| TRANSMISSION RATIO [i=n1:n2] |
1:1
|
| TORQUE [Nm] |
28
|
| HEIGHT [mm] |
100
|
| Direction |
LEFT-RIGHT HAND
|
| Compatible machines |
Angelini > Zenit (STAR)
Avia > 30 M (STAR)
Avia > 35 M/MS (STAR)
Colchester > T6MS (STAR)
Colchester > T8MS (STAR)
Colchester > T8MSY VDI30 (STAR)
DMG MORI / Gildemeister > CLX 350 V6 (STAR)
DMG MORI / Gildemeister > CTV 160 right (STAR)
DMG MORI / Gildemeister > CTV 160 right (STAR, VERTICAL)
DMG MORI / Gildemeister > CTX 210 (STAR)
DMG MORI / Gildemeister > CTX 300 (STAR)
DMG MORI / Gildemeister > CTX 310 (STAR)
DMG MORI / Gildemeister > CTX 320 Schaft 30 (STAR)
DMG MORI / Gildemeister > CTX 400E Schaft 30 V5 (STAR)
DMG MORI / Gildemeister > CTX 410 Schaft 30 (STAR)
DMG MORI / Gildemeister > CTX 420 Schaft 30 (STAR)
DMG MORI / Gildemeister > CTX alpha 500 (STAR)
DMG MORI / Gildemeister > CTX alpha 500 V6 VDI30 (STAR)
DMG MORI / Gildemeister > CTX beta 1250 VDI30 (STAR)
DMG MORI / Gildemeister > CTX beta 500 VDI30 (STAR)
DMG MORI / Gildemeister > CTX beta 800 VDI30 (STAR)
DMG MORI / Gildemeister > GM 70 5480 (STAR)
DMG MORI / Gildemeister > Sprint 65 (STAR)
DMG MORI / Gildemeister > TWIN 102 Schaft 30 (STAR)
DMG MORI / Gildemeister > TWIN 42 (STAR)
DMG MORI / Gildemeister > TWIN 65 Schaft 30 (STAR)
DOOSAN > S240LM (STAR)
DOOSAN > S280M Schaft 30 (STAR)
DOOSAN > S310M (STAR)
DOOSAN > S310NM (STAR)
DOOSAN > Z290 (STAR)
Duplomatic > VDI30 5480 (STAR)
EMCO > 365 old (STAR)
EMCO > 465 old (STAR)
Force ONE > FCL-450TM/S, 550TM/S, 580TM (STAR, VERTICAL)
Gital > Gmc70 (STAR)
Graziano > CTX 320 V4-V6 (STAR)
Graziano > GT300 (STAR)
Graziano > TWIN 50 (STAR)
Hardinge > Elite 8/51 (STAR)
Hardinge > Elite 8/52 (STAR)
Hardinge > GS150M VDI30 (STAR)
Hardinge > GS200M VDI30 (STAR)
Hyundai WIA > L 200, 250Y/SY (STAR)
Hyundai WIA > SKT 200, 250Y/SY (STAR)
Kovosvit MAS > Hi Turn 65-9x (STAR)
Leadwell > LTC8T25MY VDI30 (STAR)
LMW > LL20TM/MYL5 (VDI30) (STAR)
Monforts > DNC3 (STAR)
NCT > JCL 60 YTSM (STAR)
Sauter > VDI30 5480 (STAR)
Scherer Feinbau > VDZ120 L Schaft30 (STAR, VERTICAL)
Schuster > VTM350 Future line (STAR, VERTICAL)
Spinner > UP65-SMC (STAR)
TRENS > SBL300 (STAR)
Victor > Vturn 16CV (STAR)
Victor > Vturn 20CV (STAR)
Victor > Vturn II 20YCV (STAR)
Weiler > DZ67 (STAR)
WIA(KIA) > L150 SY (STAR)
|
