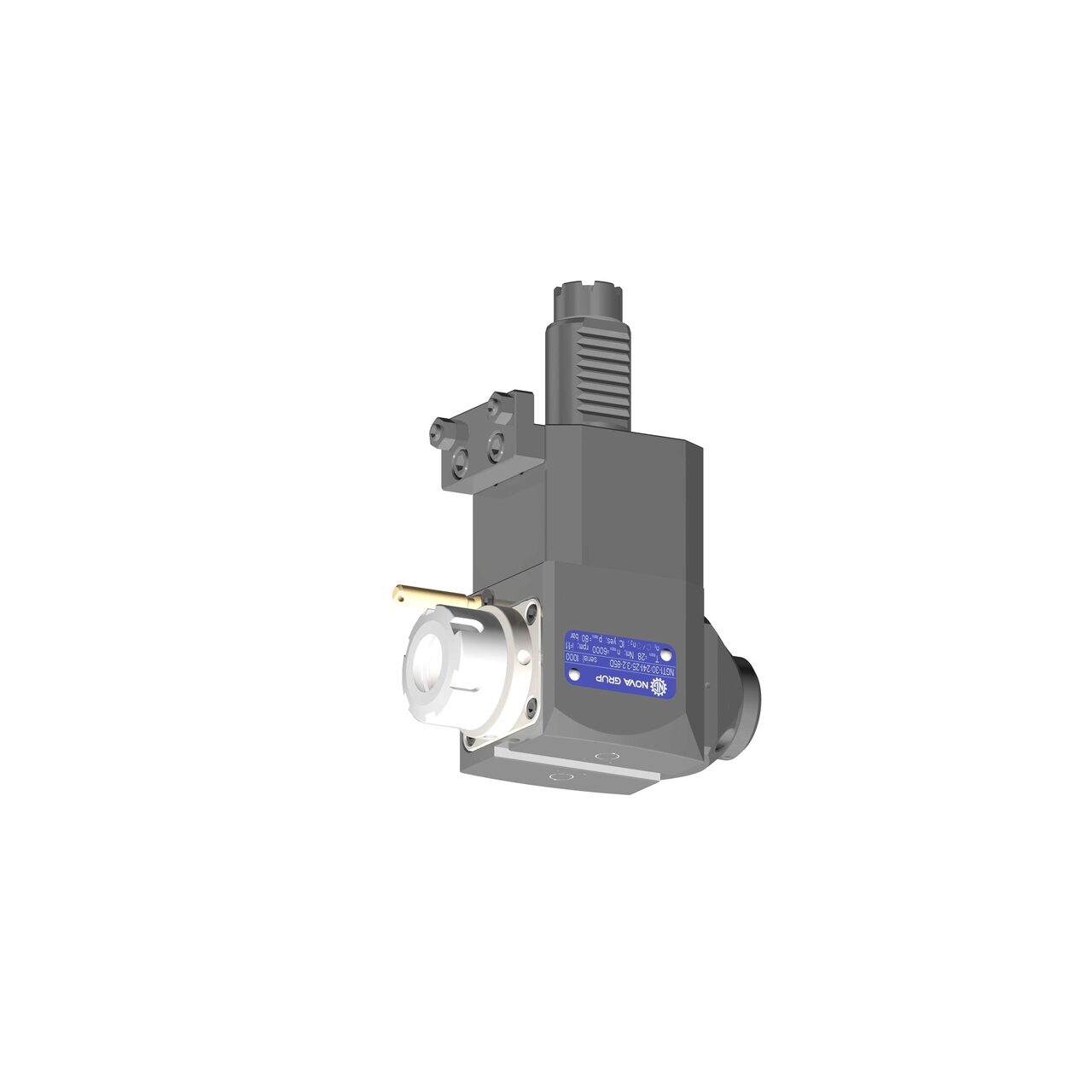

VDI 30, angular tool holder, coupling TOEM, with 80bar internal cooling
Delivery terms
ex-works Deva (Romania)
VDI 30, angular tool holder, coupling TOEM, with 80bar internal cooling
| PRODUCT CODE |
NGT1-30/241-25/3.2-85D
|
| Status under request |
under request
|
| TURRET INTERFACE TYPE |
VDI
|
| SHANK SIZE [mm] |
30
|
| DRIVE COUPLING TYPE |
BARUFFALDI / TOEM
|
| BEARING TYPE |
High Speed Ball Spindle
|
| PRODUCT TYPE |
ANGULAR
|
| COOLANT |
Internal 80bar
|
| TOOL GRIP DIMENSION |
Collet ER25
|
| TOOL GRIP TYPE |
COLLET
|
| TRANSMISSION RATIO [i=n1:n2] |
1:1
|
| TORQUE [Nm] |
28
|
| HEIGHT [mm] |
85
|
| Direction |
LEFT HAND
|
| Compatible machines |
Baruffaldi > VDI30 TOEM (STAR)
Spinner > TC600 MCY/SMCY VDI30 (STAR)
|
