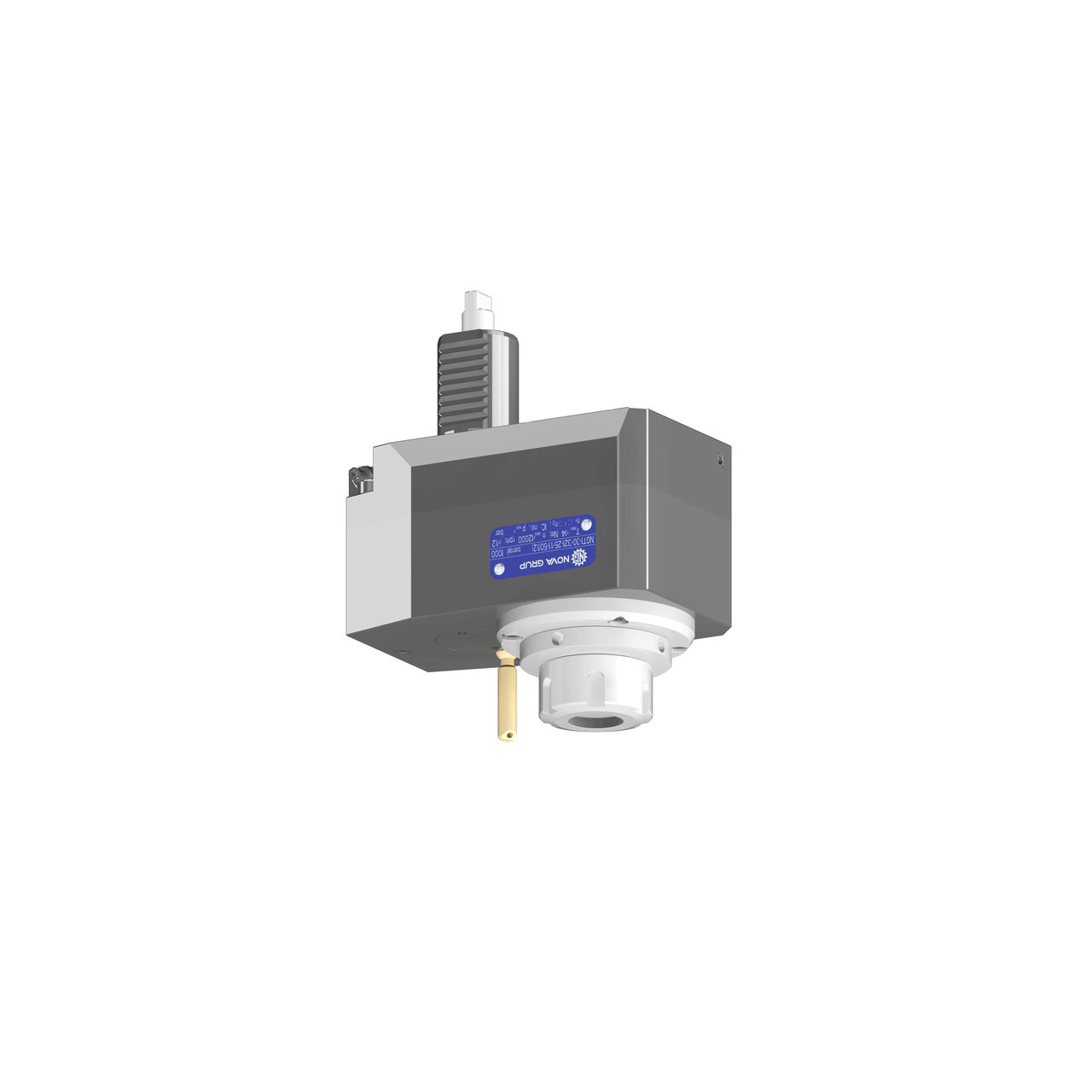

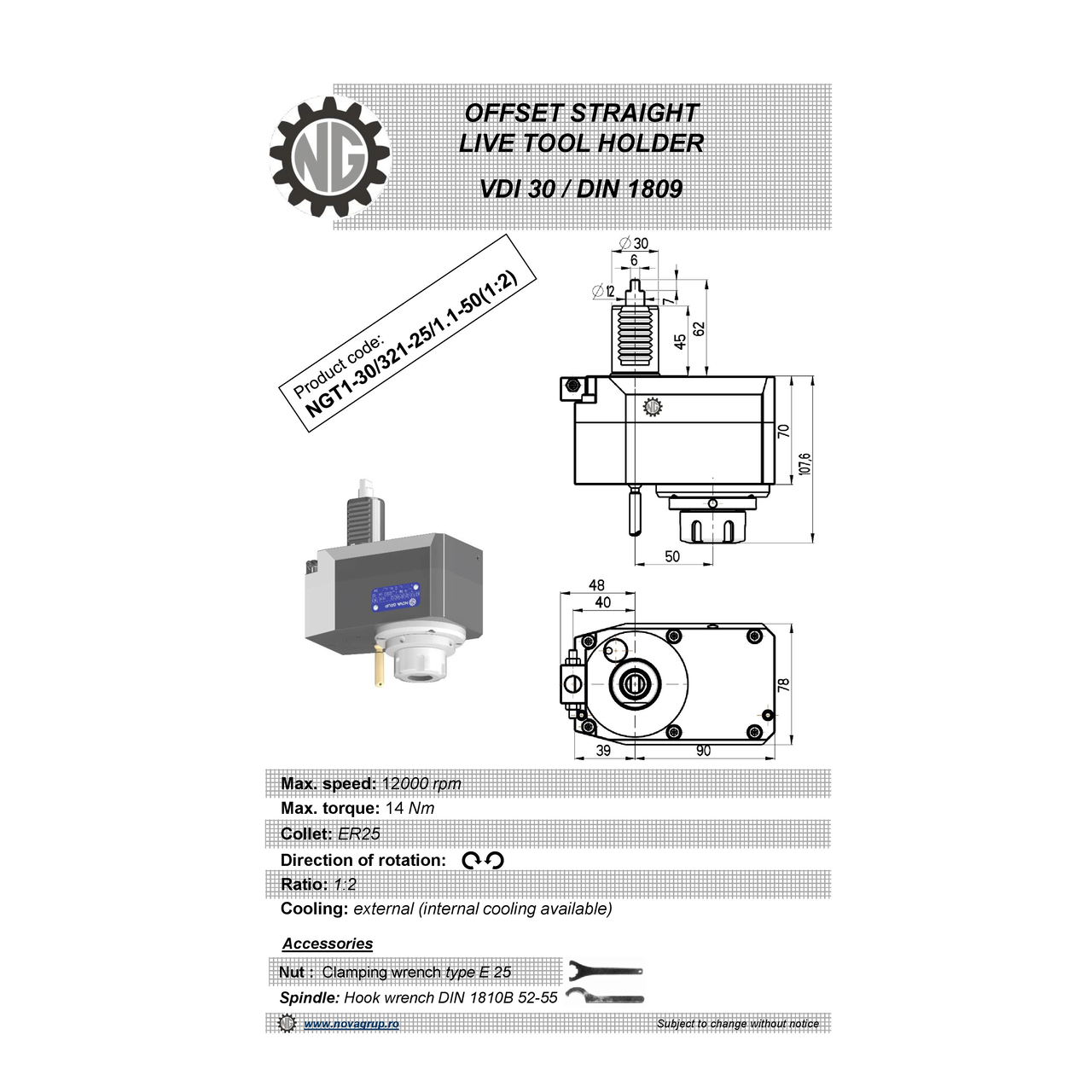

VDI 30. straight&offset tool holder. coupling DIN 1809. no internal cooling
Delivery terms
ex-works Deva (Romania)
| TYPE OF TOOL HOLDER |
LIVE TOOLS
|
| TURRET INTERFACE TYPE |
VDI
|
| SHANK SIZE [mm] |
30
|
| DRIVE COUPLING TYPE |
DIN 1809
|
| BEARING TYPE |
Spindle bearings
|
| PRODUCT TYPE |
OFFSET STRAIGHT
|
| DIRECTION |
RIGHT HAND
|
| HEIGHT [mm] |
50
|
| COOLANT |
External Coolant
|
| TOOL GRIP TYPE |
ER Collet
|
| TOOL GRIP DIMENSION |
Collet ER25
|
| TRANSMISSION RATIO [i=n1:n2] |
1:2
|
| TORQUE [Nm] |
14
|
| Compatible machines |
BIGLIA > B111 VDI30 (DISC)
BIGLIA > B42 VDI30 1809 (DISC)
EMCO > EMCOTURN 345/II DIN1809 (DISC)
HURCO > TMM8I (STAR)
FAIR FRIEND > FTC-10 (DISC)
FAIR FRIEND > FTC-25MC (DISC)
YEONG CHIN > TCR26/26L (DISC)
ANGELINI > SNUPY DUPLOMATICREVOLVER (DISC)
FADAL > PTC150 (DISC)
FOCUS CNC > FCL 200MC (DISC)
SCHAUBLIN > 140CNC (DISC)
CHING HUNG > CL200 (DISC)
ROMI > GL250M (DISC)
DUPLOMATIC > VDI30 1809 (DISC)
MAGDEBURGER > M110 (DISC)
ACCUWAY > UT-200 (DISC)
YCM > GT200 MA (DISC)
CAZENEUVE > CTN210 (DISC)
SAEILO > CONTUR LT-15 MC (DISC)
EMCO > 360 (DISC)
DAEWOO > PUMA 200 M (DISC)
ROMI > GL240M (DISC)
HWACHEON > CUTEX 160 (STAR)
LEADWELL > T6 M (DISC)
CHEVALIER > FCL-820MC (DISC)
ANGELINI > FELIX CNC (DISC)
CNC TAKANG > TNC-20N (DISC)
YCM > TC16 MA/MB (DISC)
JINN FA > JCL 60M (DISC)
CHIAH CHYUN > C-4212TM (DISC)
CINCINNATI > HTC150 (DISC)
LEADWELL > LTC 20M / 20IM (DISC)
EMCO > 345 OLD (DISC)
|
