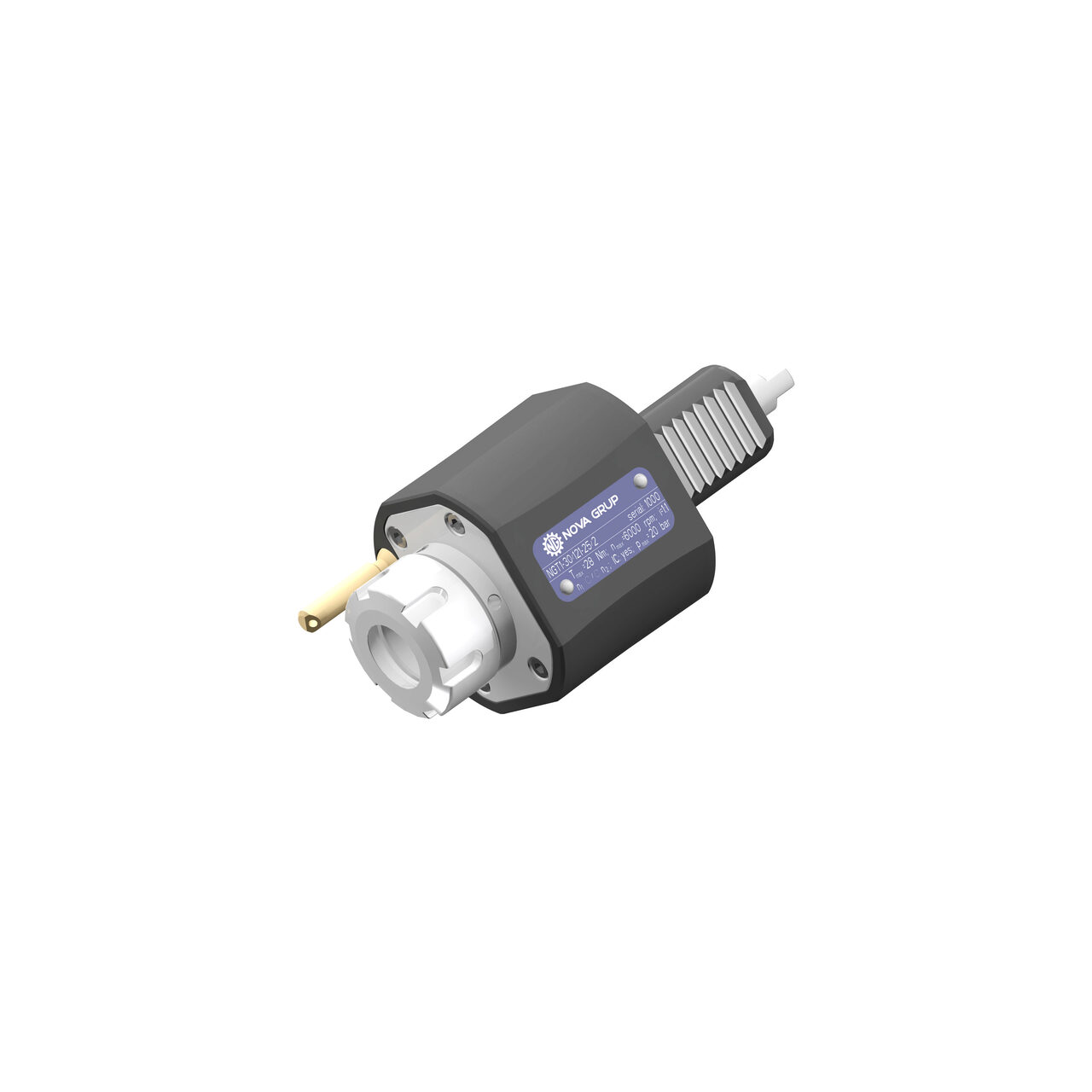

VDI 30, straight tool holder, coupling DIN 1809, with internal cooling
Product details
Product code: NGT1-30/121-25/2
Delivery terms
ex-works Deva (Romania)
VDI 30, straight tool holder, coupling DIN 1809, with internal cooling
| PRODUCT CODE |
NGT1-30/121-25/2
|
| TURRET INTERFACE TYPE |
VDI
|
| SHANK SIZE [mm] |
30
|
| DRIVE COUPLING TYPE |
DIN 1809
|
| BEARING TYPE |
High Speed Ball Spindle
|
| PRODUCT TYPE |
STRAIGHT
|
| COOLANT |
Internal 20bar
|
| TOOL GRIP DIMENSION |
Collet ER25
|
| TOOL GRIP TYPE |
COLLET
|
| TRANSMISSION RATIO [i=n1:n2] |
1:1
|
| TYPE OF TOOL HOLDER |
LIVE TOOLS
|
| TORQUE [Nm] |
28
|
| Compatible machines |
Takamaz > XY 1000 (VDI30) (DISC)
Accuway > UT-200 (DISC)
Angelini > Felix CNC (DISC)
Angelini > Snupy Duplomaticrevolver (DISC)
Biglia > B111 VDI30 (DISC)
Biglia > B42 VDI30 1809 (DISC)
Cazeneuve > CTN210 (DISC)
Chevalier > FCL-820MC (DISC)
CHIAH CHYUN > C-4212TM (DISC)
CHING HUNG > CL200 (DISC)
Cincinnati > HTC150 (DISC)
CNC Takang > TNC-20N (DISC)
Daewoo > PUMA 200 M (DISC)
Duplomatic > VDI30 1809 (DISC)
EMCO > 345 old (DISC)
EMCO > 360 (DISC)
EMCO > E300 (DISC)
EMCO > EMCOTURN 345/II DIN1809 (DISC)
Fadal > PTC150 (DISC)
Fair Friend > FTC-10 (DISC)
Fair Friend > FTC-25MC (DISC)
Focus CNC > FCL 200MC (DISC)
HURCO > TMM8i (STAR)
Hwacheon > Cutex 160 (STAR)
Jinn Fa > JCL 60M (DISC)
Jyoti > ATM 160 (VDI30) (DISC)
Jyoti > AX 200 VDI30 (DISC)
Leadwell > LTC 20M / 20iM (DISC)
Leadwell > T6 M (DISC)
Magdeburger > M110 (DISC)
Romi > GL240M (DISC)
Romi > GL250M (DISC)
Saeilo > Contur LT-15 MC (DISC)
Schaublin > 140CNC (DISC)
Schaublin > 180CCN (DISC)
Schaublin > TMY=TR16-100-D/12
YCM > GT200 MA (DISC)
YCM > TC16 MA/MB (DISC)
YEONG CHIN > TCR26/26L (DISC)
|
