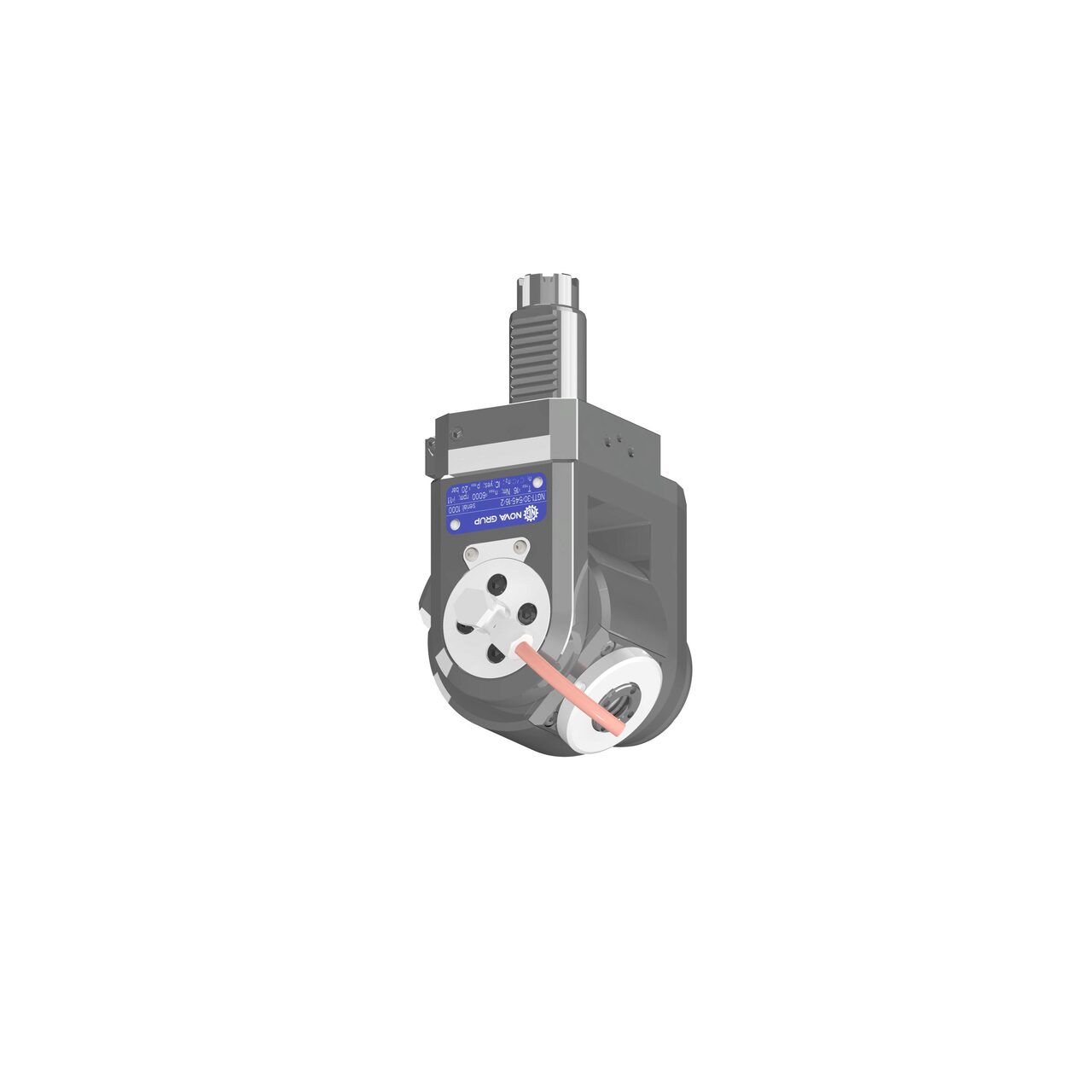

VDI 30, variable angle tool holder, coupling TOEM, with internal cooling
Delivery terms
ex-works Deva (Romania)
VDI 30, variable angle tool holder, coupling TOEM, with internal cooling
| PRODUCT CODE |
NGT1-30/545-16/2
|
| TURRET INTERFACE TYPE |
VDI
|
| SHANK SIZE [mm] |
30
|
| DRIVE COUPLING TYPE |
BARUFFALDI / TOEM
|
| BEARING TYPE |
High Speed Ball Spindle
|
| PRODUCT TYPE |
VARIABLE ANGLE
|
| COOLANT |
Internal 20bar
|
| TOOL GRIP DIMENSION |
Collet ER16
|
| TOOL GRIP TYPE |
COLLET
|
| TRANSMISSION RATIO [i=n1:n2] |
1:1
|
| TORQUE [Nm] |
16
|
| Direction |
RIGHT HAND
|
| Compatible machines |
Baruffaldi > VDI30 TOEM (DISC)
Ecoca > MT-308MCS (DISC)
Edel > SL35 (DISC)
Johnford > SL 20, 30, 35, 40 (DISC)
Spinner > TC400 (DISC)
Spinner > TC46 (DISC)
Spinner > TC52 (DISC)
Spinner > TC65 (DISC)
Spinner > TC67 VDI30 (DISC)
Spinner > TC80 VDI30 (DISC)
Spinner > TS46 (DISC)
Spinner > TS66LMC (DISC)
Traub > TND 200 (DISC)
|
