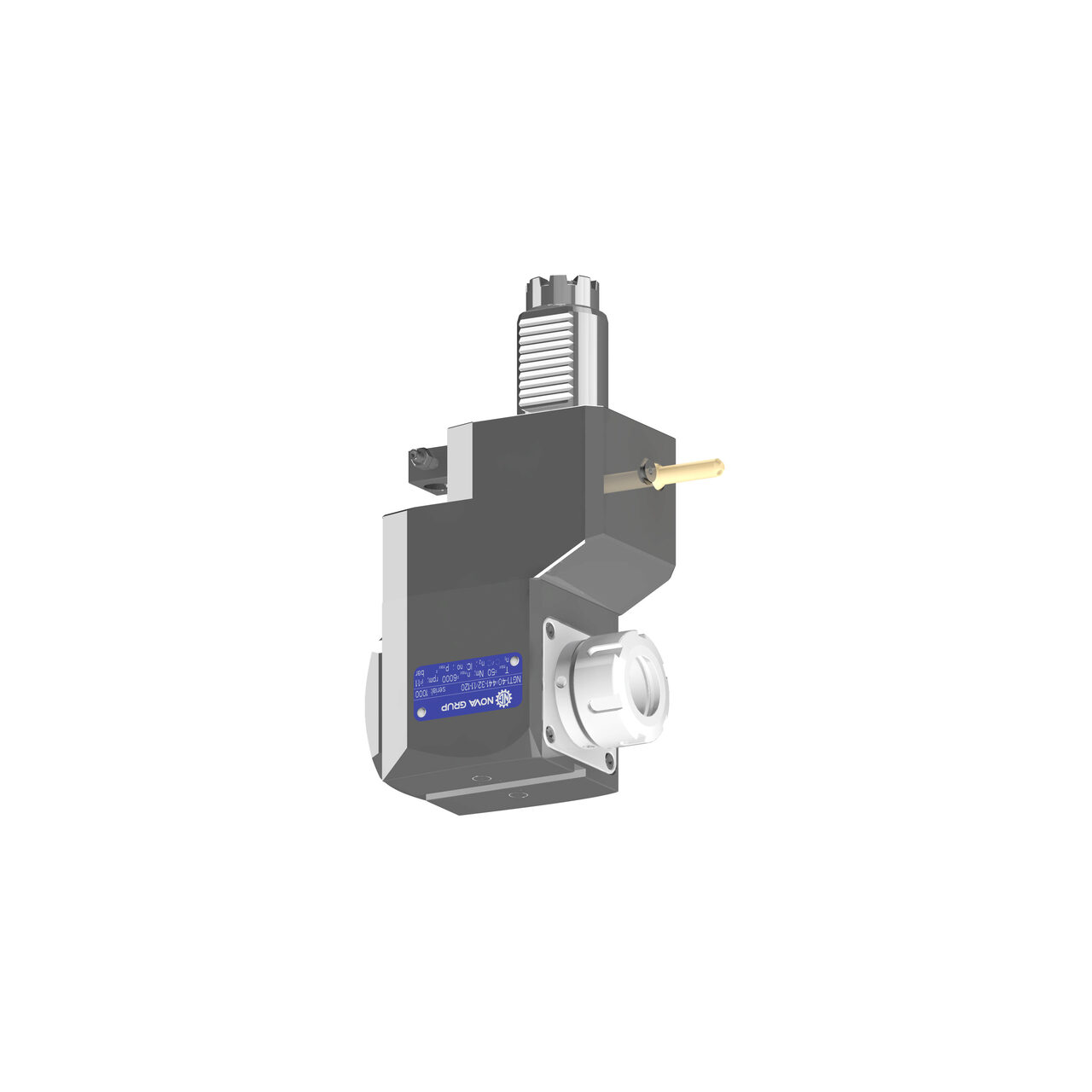

VDI 40. angular&offset tool holder. coupling TOEM. no internal cooling
Product details
Product Code: NGT1-40/441-32/1.1-120
Delivery terms
ex-works Deva (Romania)
VDI 40, angular&offset tool holder, coupling TOEM, no internal cooling
| Status under request |
DA
|
| PRODUCT CODE |
NGT1-40/441-32/1.1-120
|
| TYPE OF TOOL HOLDER |
LIVE TOOLS
|
| TURRET INTERFACE TYPE |
VDI
|
| SHANK SIZE [MM] |
40
|
| DRIVE COUPLING TYPE |
BARUFFALDI / TOEM
|
| BEARING TYPE |
Spindle bearings
|
| PRODUCT TYPE |
OFFSET ANGULAR
|
| DIRECTION |
RIGHT HAND
|
| HEIGHT [MM] |
120
|
| COOLANT |
External Coolant
|
| TOOL GRIP TYPE |
ER Collet
|
| TOOL GRIP DIMENSION |
Collet ER32
|
| TRANSMISSION RATIO [I=N1:N2] |
1:1
|
| TORQUE [NM] |
50
|
| Compatible machines |
SPINNER > TC800 MC VDI40 (DISC)
ECOCA > MT-310MC (DISC)
ACCUWAY > UT-300/300L (DISC)
SPINNER > TC600 MC VDI40 (DISC)
SPINNER > TC80 VDI40 (DISC)
SPINNER > TC67 VDI40 (DISC)
STYLE > STYLE 750 (DISC)
CMZ > TL 20M (VDI40) (DISC)
ECOCA > MT-308MC (DISC)
JOHNFORD > SL 50. 60. 65 (DISC)
ECOCA > MT-312MC (DISC)
BARUFFALDI > VDI40 TOEM (DISC)
|
