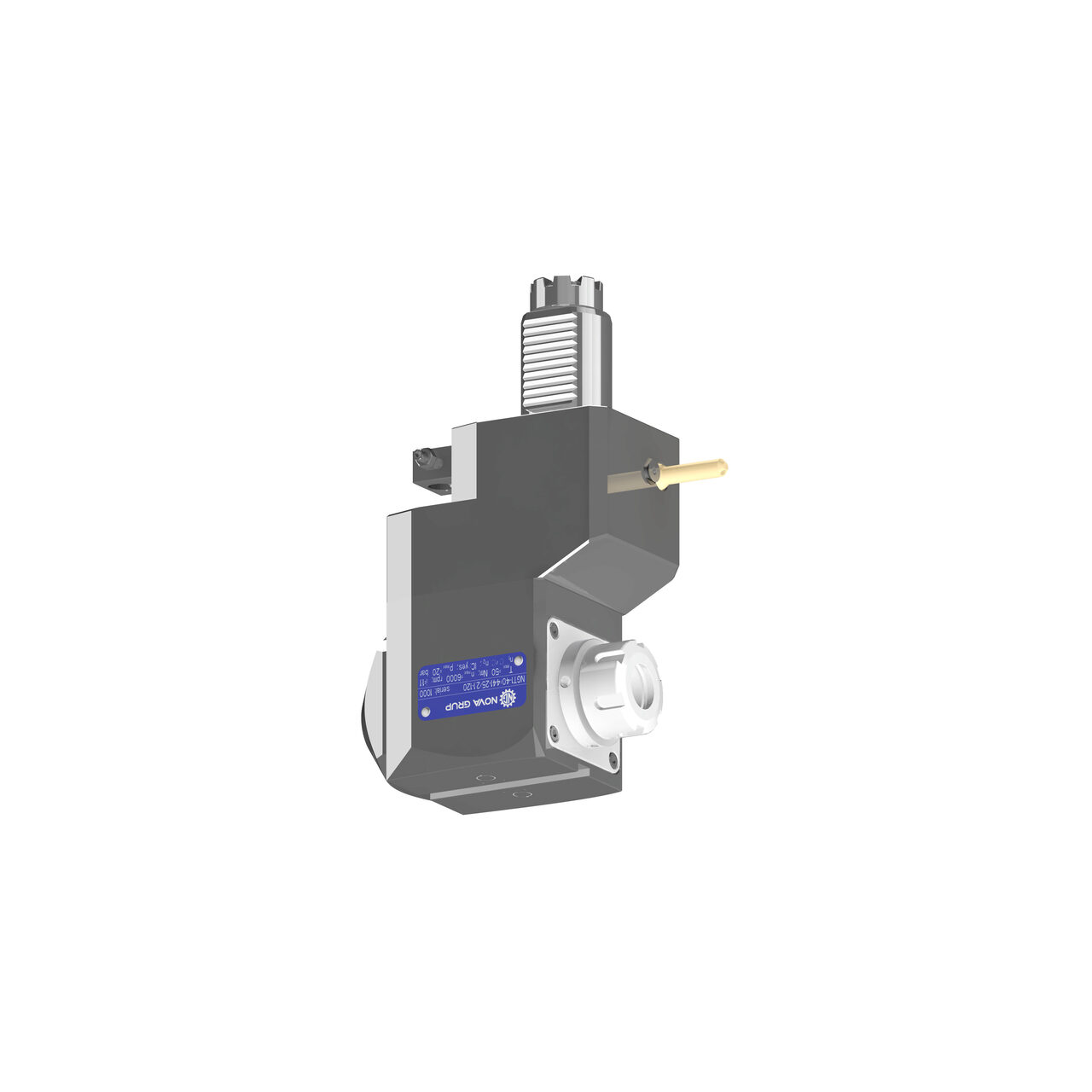

VDI 40, angular&offset tool holder, coupling TOEM, with internal cooling
Product details
Product code: NGT1-40/441-25/2.1-120
Delivery terms
ex-works Deva (Romania)
VDI 40, angular&offset tool holder, coupling TOEM, with internal cooling
| PRODUCT CODE |
NGT1-40/441-25/2.1-120
|
| TURRET INTERFACE TYPE |
VDI
|
| SHANK SIZE [mm] |
40
|
| DRIVE COUPLING TYPE |
BARUFFALDI / TOEM
|
| BEARING TYPE |
High Speed Ball Spindle
|
| PRODUCT TYPE |
ANGULAR&OFFSET
|
| COOLANT |
Internal 20bar
|
| TOOL GRIP DIMENSION |
Collet ER25
|
| TOOL GRIP TYPE |
COLLET
|
| TRANSMISSION RATIO [i=n1:n2] |
1:1
|
| TYPE OF TOOL HOLDER |
LIVE TOOLS
|
| TORQUE [Nm] |
50
|
| HEIGHT [mm] |
120
|
| Direction |
RIGHT HAND
|
| Compatible machines |
Accuway > UT-300/300L (DISC)
Baruffaldi > VDI40 TOEM (DISC)
CMZ > TL 20M (VDI40) (DISC)
Ecoca > MT-308MC (DISC)
Ecoca > MT-310MC (DISC)
Ecoca > MT-312MC (DISC)
Johnford > SL 50, 60, 65 (DISC)
Spinner > TC600 MC VDI40 (DISC)
Spinner > TC67 VDI40 (DISC)
Spinner > TC80 VDI40 (DISC)
Spinner > TC800 MC VDI40 (DISC)
Style > Style 750 (DISC)
|
