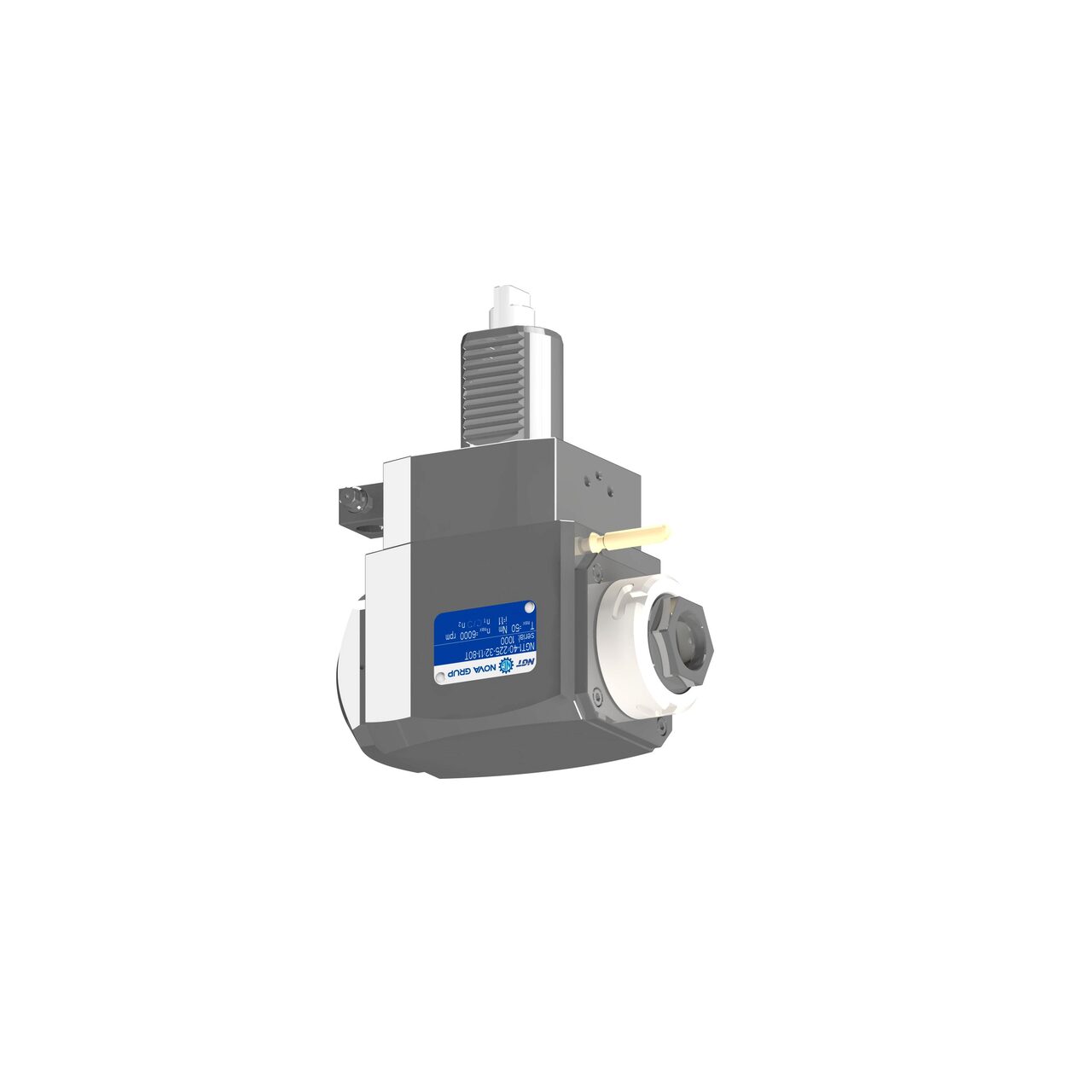

VDI 40. angular tool holder. coupling DIN 1809. no internal cooling. with tapered roller bearings
Delivery terms
ex-works Deva (Romania)
VDI 40, angular tool holder, coupling DIN 1809, no internal cooling, with tapered roller bearings
| Status under request |
DA
|
| PRODUCT CODE |

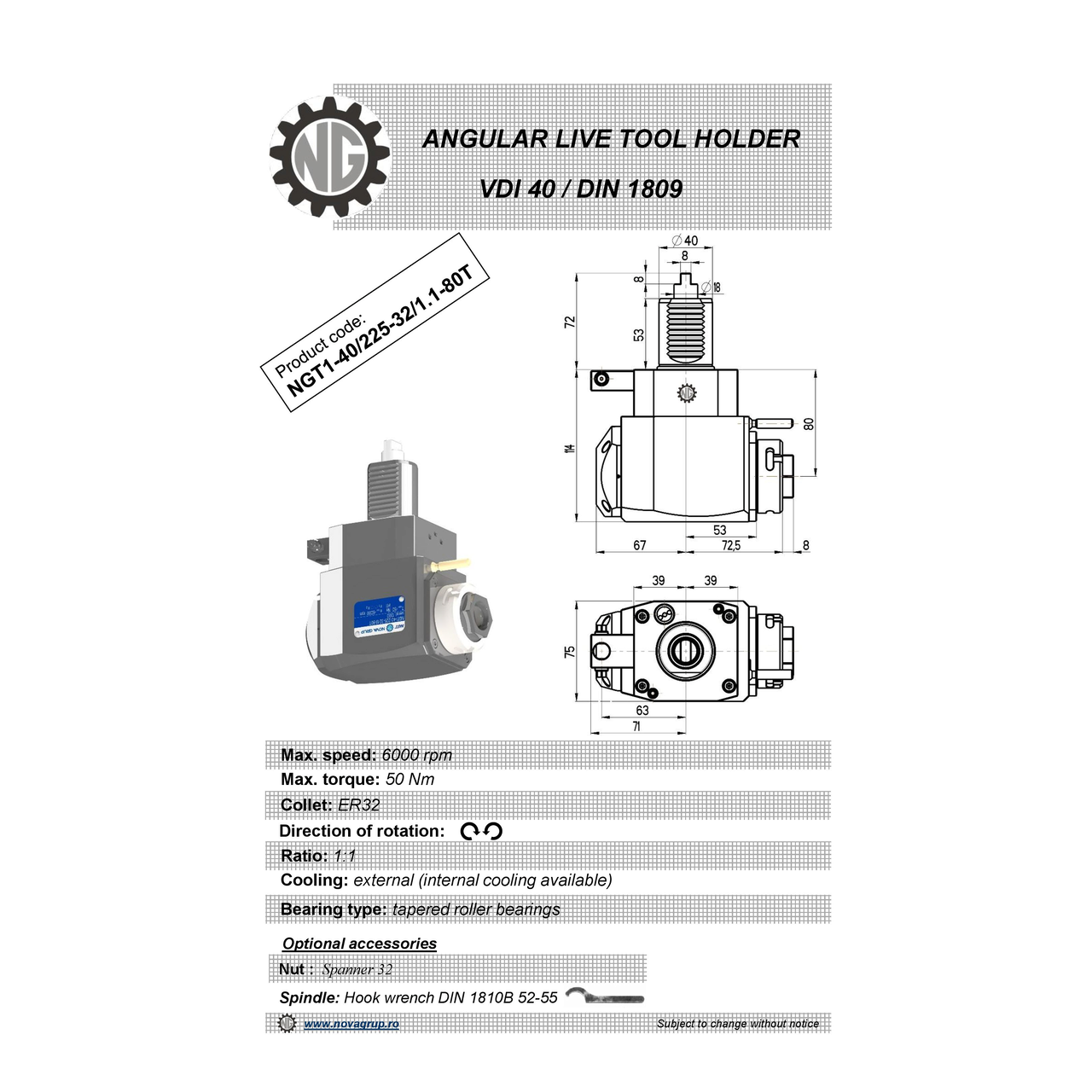

NGT1-40/225-32/1.1-80T
|
| TYPE OF TOOL HOLDER |
LIVE TOOLS
|
| TURRET INTERFACE TYPE |
VDI
|
| SHANK SIZE [mm] |
40
|
| DRIVE COUPLING TYPE |
DIN 1809
|
| BEARING TYPE |
Tapered roller bearings
|
| PRODUCT TYPE |
ANGULAR
|
| DIRECTION |
RIGHT HAND
|
| HEIGHT [mm] |
80
|
| COOLANT |
External Coolant
|
| TOOL GRIP TYPE |
ER Collet
|
| TOOL GRIP DIMENSION |
Collet ERA32
|
| TRANSMISSION RATIO [i=n1:n2] |
1:1
|
| TORQUE [Nm] |
50
|
| Compatible machines |
HURCO > TMM10I (STAR)
YCM > GT300 MA/LMA/MB/LMB (DISC)
YCM > GT250 MA/LMA/MB/LMB (DISC)
HURCO > TMM10 (STAR)
HITACHI SEIKI > HT 20S (DISC)
BATLIBOI > SPRINT 25TC (DISC)
KOVOSVIT MAS > S50 VDI40 (DISC)
LEADWELL > LTC 25 BLM (DISC)
DAEWOO > PUMA 200 MS (DISC)
FOCUS CNC > FCL 300MC (DISC)
ROMI > G30M 1809 (DISC)
HITACHI SEIKI > HT 25G (DISC)
HARDINGE > TALENT 10/78 (DISC)
CINCINNATI > HTC250 (DISC)
BIGLIA > B200 VDI40 (DISC)
FAIR FRIEND > FTC-30 (DISC)
HITACHI SEIKI > CS20/CS25 (DISC)
ALEX-TECH > VT28-28BL (DISC)
CNC TAKANG > TNC-2000DST (DISC)
CHING HUNG > CL260 (DISC)
HITACHI SEIKI > HICELL 23S (DISC)
ROMI > GL250M (DISC)
FADAL > PTC250 (DISC)
HYUNDAI > HIT 200M (DISC)
MAGDEBURGER > M120 (DISC)
SOMAB > TRANSMAB 500 (DISC)
FAIR FRIEND > FTC-20 (DISC)
HITACHI SEIKI > HT 200/250 (DISC)
CHING HUNG > CL38 (DISC)
TAKSAN > TTC630 DUPLOMATIC (DISC)
CNC TAKANG > TNC-30N (DISC)
SAEILO > CONTUR LT-20 MC (DISC)
CINCINNATI > HTC200 (DISC)
CHEVALIER > FCL-1028MC (DISC)
EMCO > ET500 (DISC)
HITACHI SEIKI > HT 23R (DISC)
ROMI > GL280M (DISC)
DUPLOMATIC > VDI40 1809 (DISC)
ROMI > GL300M (DISC)
LEADWELL > T8 M (DISC)
DAEWOO > PUMA 250 MS (DISC)
BIGLIA > B56 VDI40 (DISC)
BIGLIA > B111 VDI40 (DISC)
|
