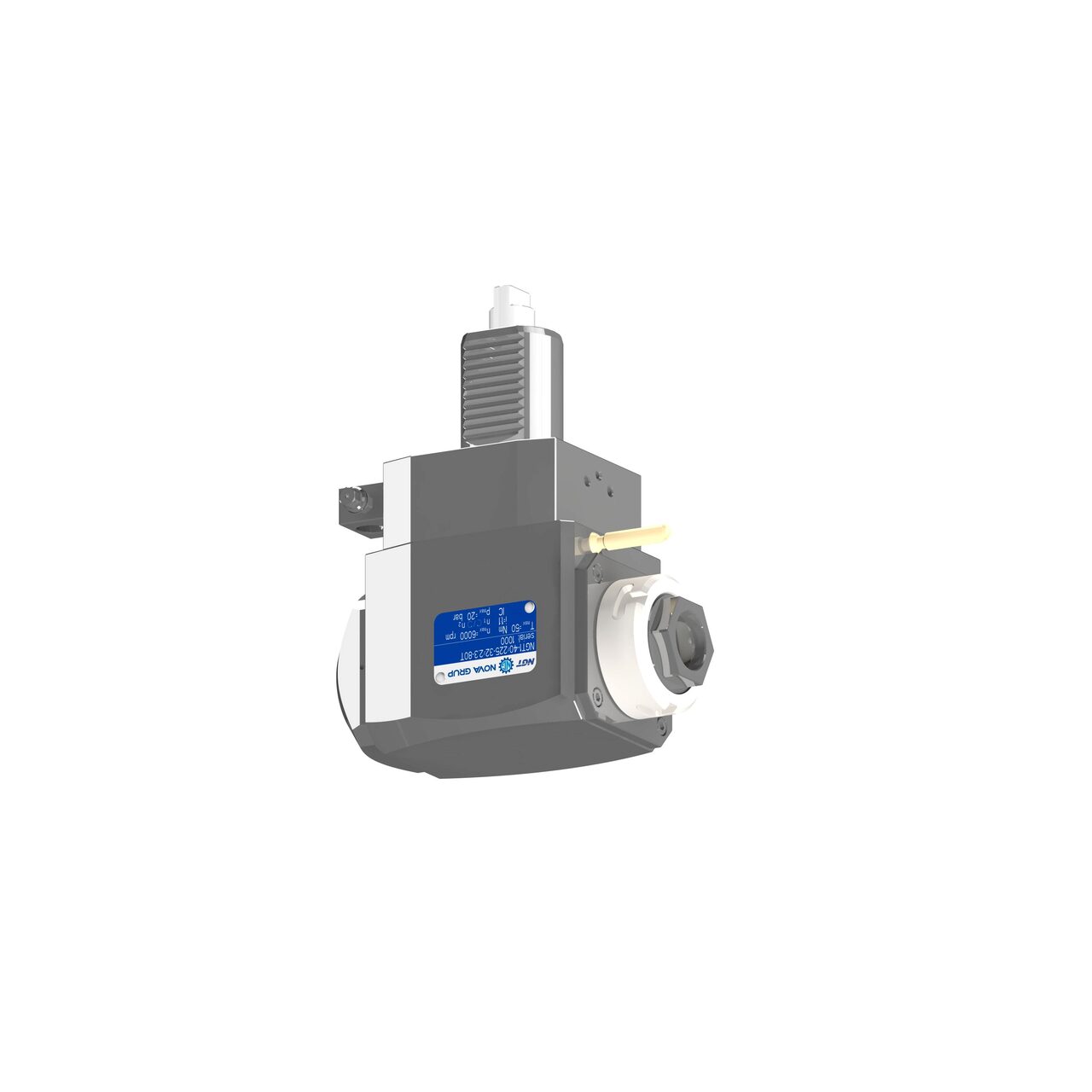

VDI 40, angular tool holder, coupling DIN 1809, with internal cooling, with tapered roller bearings
Delivery terms
ex-works Deva (Romania)
VDI 40, angular tool holder, coupling DIN 1809, with internal cooling, with tapered roller bearings
| PRODUCT CODE |
NGT1-40/225-32/2.3-80T
|
| TURRET INTERFACE TYPE |
VDI
|
| SHANK SIZE [mm] |
40
|
| DRIVE COUPLING TYPE |
DIN 1809
|
| BEARING TYPE |
Tapered roller bearings
|
| PRODUCT TYPE |
ANGULAR
|
| COOLANT |
Internal 20bar
|
| TOOL GRIP DIMENSION |
Collet ER32
|
| TOOL GRIP TYPE |
COLLET
|
| TRANSMISSION RATIO [i=n1:n2] |
1:1
|
| TORQUE [Nm] |
50
|
| HEIGHT [mm] |
80
|
| Direction |
LEFT-RIGHT HAND
|
| Compatible machines |
HURCO > TMM10 (STAR)
HURCO > TMM10i (STAR)
HURCO > TMX10 MY/MYS 1809 (STAR)
HURCO > TMX8 MY/MYS 1809 (STAR)
|
