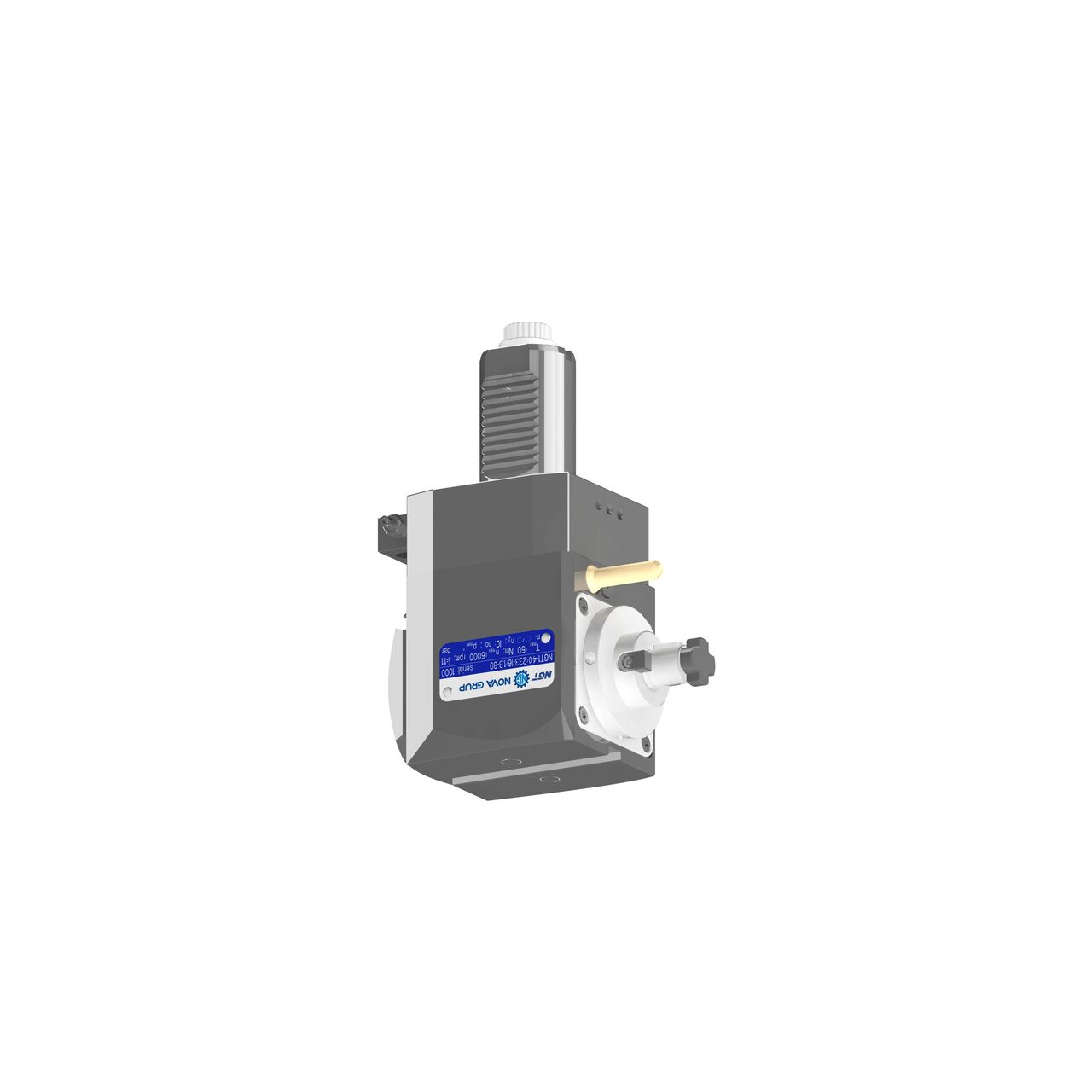

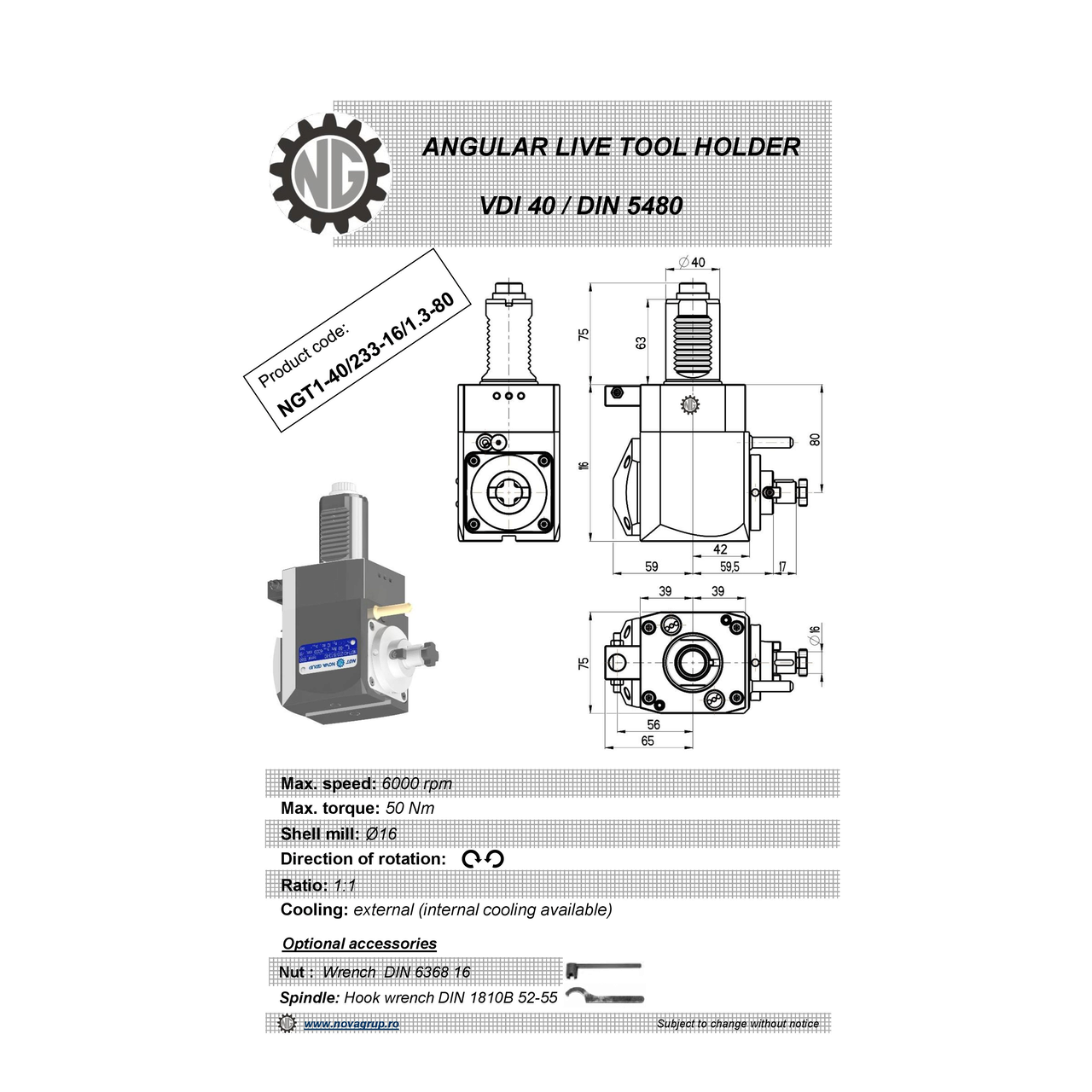

VDI 40. angular tool holder. coupling DIN 5480 Sauter synchron . no internal cooling
Delivery terms
ex-works Deva (Romania)
VDI 40, angular tool holder, coupling DIN 5480, no internal cooling
| Status under request |
under request
|
| TYPE OF TOOL HOLDER |
LIVE TOOLS
|
| TURRET INTERFACE TYPE |
VDI
|
| SHANK SIZE [mm] |
40
|
| DRIVE COUPLING TYPE |
DIN 5480
|
| BEARING TYPE |
Spindle bearings
|
| PRODUCT TYPE |
ANGULAR
|
| Direction |
LEFT-RIGHT HAND
|
| HEIGHT [mm] |
80
|
| COOLANT |
External Coolant
|
| TOOL GRIP TYPE |
SHELL-MILL
|
| TOOL GRIP DIMENSION |
Shell-Mill Ø 16
|
| TRANSMISSION RATIO [i=n1:n2] |
1:1
|
| TORQUE [Nm] |
50
|
| Compatible machines |
Alex-Tech > VT 21/23MS (STAR)
Boehringer > NG180 (STAR)
Boehringer > NG200 (STAR)
Boehringer > NV250 left (STAR, VERTICAL)
DMG MORI / Gildemeister > GMX 250 (STAR)
DMG MORI / Gildemeister > GMX 300 (STAR)
DMG MORI / Gildemeister > GMX 400 (STAR)
DMG MORI / Gildemeister > GMX 500 (STAR)
DMG MORI / Gildemeister > TWIN 102 Schaft 40 (STAR)
DMG MORI / Gildemeister > TWIN 65 Schaft 40 (STAR)
DOOSAN > S390LM (STAR)
DOOSAN > S550LM (STAR)
EMCO > ET500 (STAR)
Fair Friend > FTC-35-2S (STAR)
FMS > NDM 20 (STAR)
Hessapp > Blueturn250 left (STAR, VERTICAL)
HURCO > TMX10 MY/MYS 5480 (STAR)
HURCO > TMX8 MY/MYS 5480 (STAR)
Leadwell > LTC8T25MY VDI40 (STAR)
Leadwell > T85M (STAR)
Monforts > DNC5 (STAR)
Monforts > Duo Turn (STAR)
Monforts > MHC (STAR)
Monforts > RNC400 Duo Turn (STAR)
Sauter > VDI40 5480 (STAR)
Scherer Feinbau > VDZ120 R Schaft40 (STAR, VERTICAL)
Shandong Precision > CH-6145-2T (STAR)
Viper > VT2300YMS (STAR)
|
