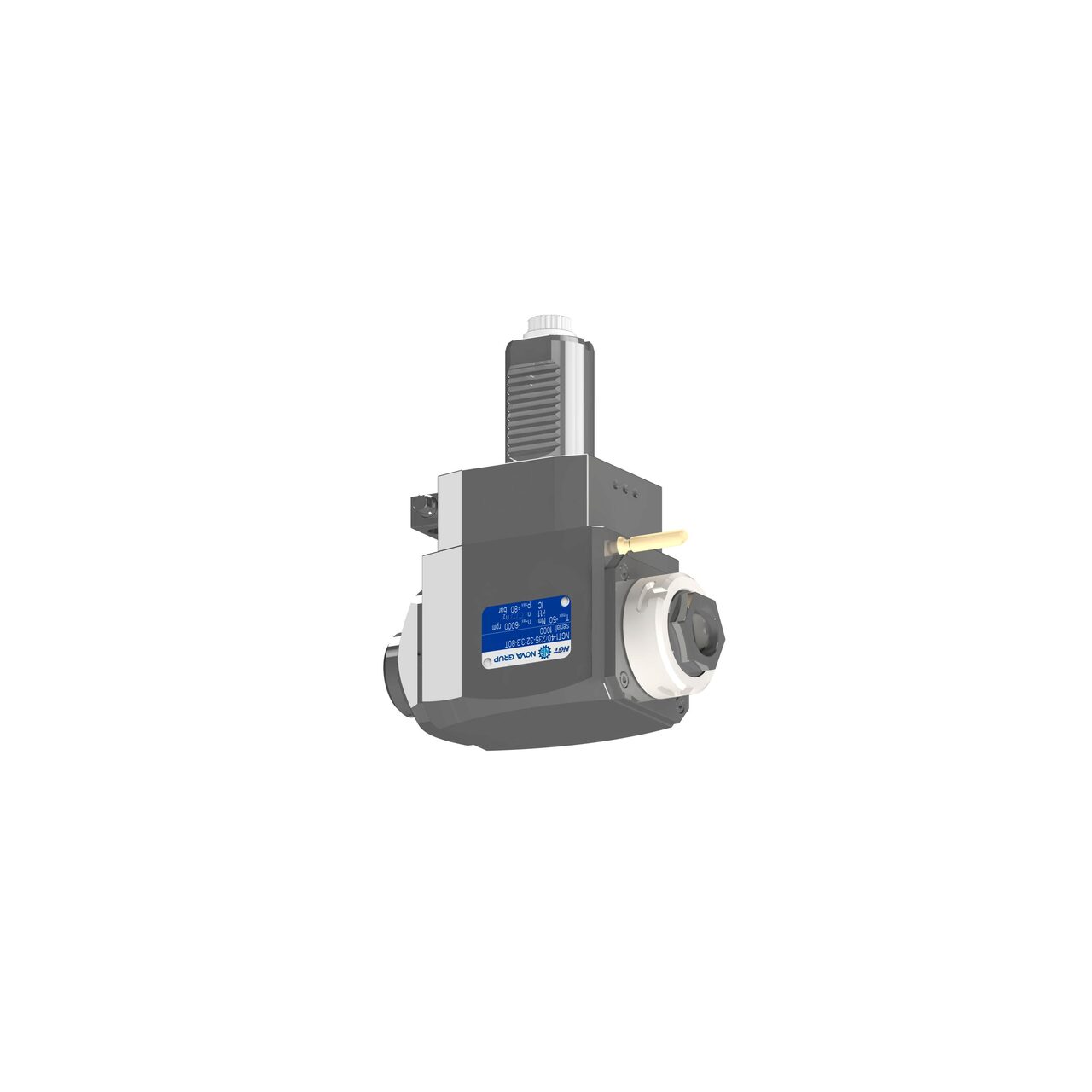

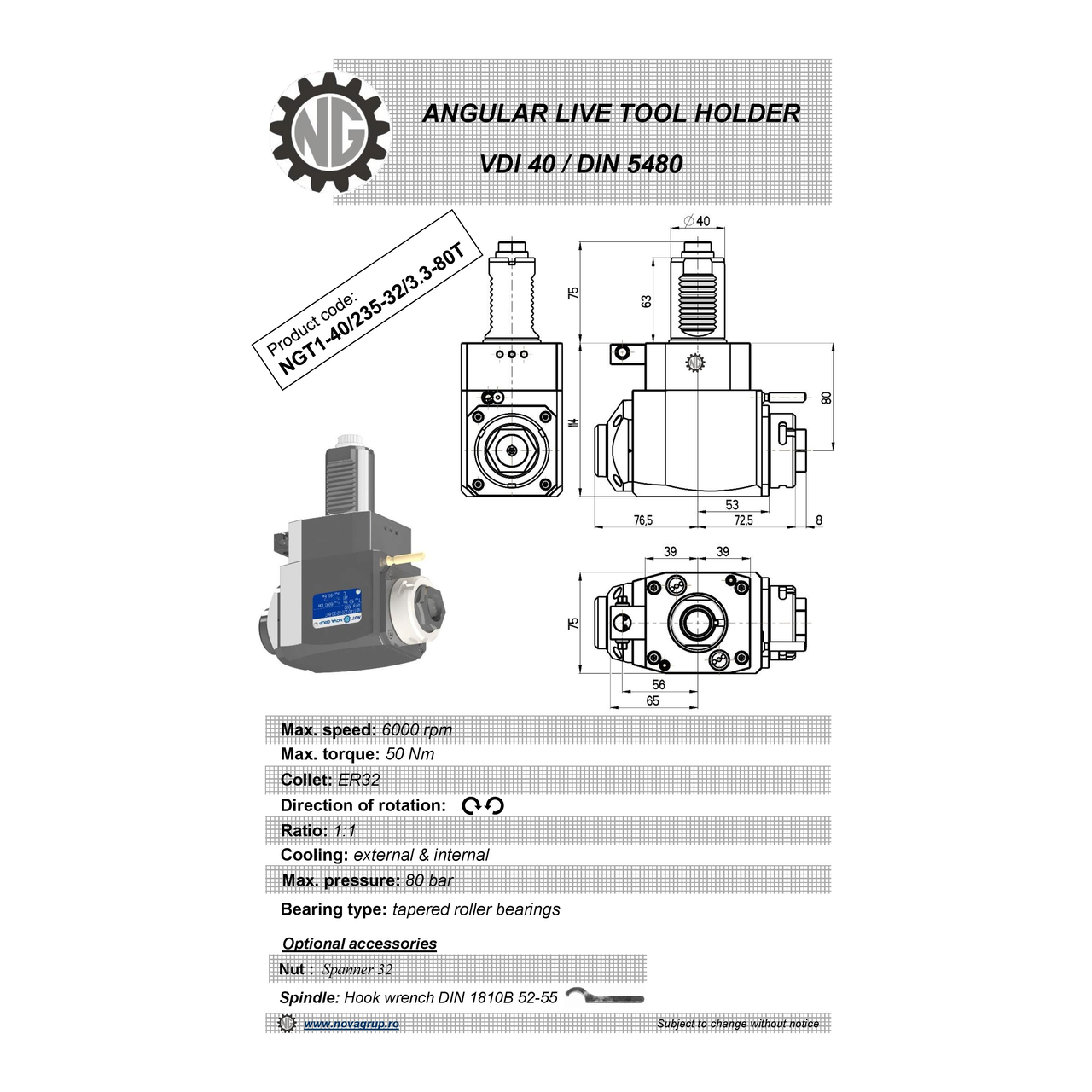

VDI 40, angular tool holder, coupling DIN 5480, with 80bar internal cooling, with tapered roller bearings
Delivery terms
ex-works Deva (Romania)
VDI 40, angular tool holder, coupling DIN 5480, with 80bar internal cooling, with tapered roller bearings
| PRODUCT CODE |
NGT1-40/235-32/3.3-80T
|
| TURRET INTERFACE TYPE |
VDI
|
| SHANK SIZE [mm] |
40
|
| DRIVE COUPLING TYPE |
DIN 5480
|
| BEARING TYPE |
Tapered roller bearings
|
| PRODUCT TYPE |
ANGULAR
|
| COOLANT |
Internal 80bar
|
| TOOL GRIP DIMENSION |
Collet ER32
|
| TOOL GRIP TYPE |
COLLET
|
| TRANSMISSION RATIO [i=n1:n2] |
1:1
|
| TORQUE [Nm] |
50
|
| HEIGHT [mm] |
80
|
| Direction |
LEFT-RIGHT HAND
|
| Compatible machines |
Hyundai WIA > L 280 LM (STAR)
Alex-Tech > VT 21/23MS (STAR)
Boehringer > NG180 (STAR)
Boehringer > NG200 (STAR)
Boehringer > NV250 left (STAR, VERTICAL)
Boehringer > NV250 right (STAR, VERTICAL)
DMG MORI / Gildemeister > CLX 450 V1/V3/V4 (STAR)
DMG MORI / Gildemeister > CLX 550 V1/V3/V4 (STAR)
DMG MORI / Gildemeister > CTV 200 right (STAR, VERTICAL)
DMG MORI / Gildemeister > CTV 250 right (STAR, VERTICAL)
DMG MORI / Gildemeister > CTX 320 Schaft 40 (STAR)
DMG MORI / Gildemeister > CTX 400E Schaft 40 V5 (STAR)
DMG MORI / Gildemeister > CTX 420 linear (STAR)
DMG MORI / Gildemeister > CTX 500 TWIN (STAR)
DMG MORI / Gildemeister > CTX beta 1250 VDI40 (STAR)
DMG MORI / Gildemeister > CTX TWIN (STAR)
DMG MORI / Gildemeister > GMX 200 (STAR)
DMG MORI / Gildemeister > GMX 250 (STAR)
DMG MORI / Gildemeister > GMX 300 (STAR)
DMG MORI / Gildemeister > GMX 400 (STAR)
DMG MORI / Gildemeister > GMX 500 (STAR)
DMG MORI / Gildemeister > TWIN 102 Schaft 40 (STAR)
DMG MORI / Gildemeister > TWIN 65 Schaft 40 (STAR)
DOOSAN > S390LM (STAR)
DOOSAN > S550LM (STAR)
Duplomatic > VDI40 5480 (STAR)
EMCO > ET500 (STAR)
Fair Friend > FTC-35-2S (STAR)
FAMAR > Pronto 6 (STAR)
FMS > NDM 20 (STAR)
Graziano > CTX 500 (STAR)
Hessapp > Blueturn250 left (STAR, VERTICAL)
Hessapp > Blueturn250 right (STAR, VERTICAL)
HURCO > TMX10 MY/MYS 5480 (STAR)
HURCO > TMX8 MY/MYS 5480 (STAR)
Kovosvit MAS > SP 280 SMC/SY (STAR)
Leadwell > LTC8T25MY VDI40 (STAR)
Leadwell > T85M (STAR)
Monforts > DNC5 (STAR)
Monforts > DNC500 (STAR)
Monforts > Duo Turn (STAR)
Monforts > MHC (STAR)
Monforts > RNC400 Duo Turn (STAR)
NILES > N30 (STAR)
Sauter > VDI40 5480 (STAR)
Scherer Feinbau > VDZ120 L Schaft40 (STAR, VERTICAL)
Scherer Feinbau > VDZ120 R Schaft40 (STAR, VERTICAL)
Shandong Precision > CH-6145-2T (STAR)
Victor > Vturn 23BCV (STAR)
Victor > Vturn 26/110CV (STAR)
Victor > Vturn 26/60CV (STAR)
Viper > VT2300YMS (STAR)
|
