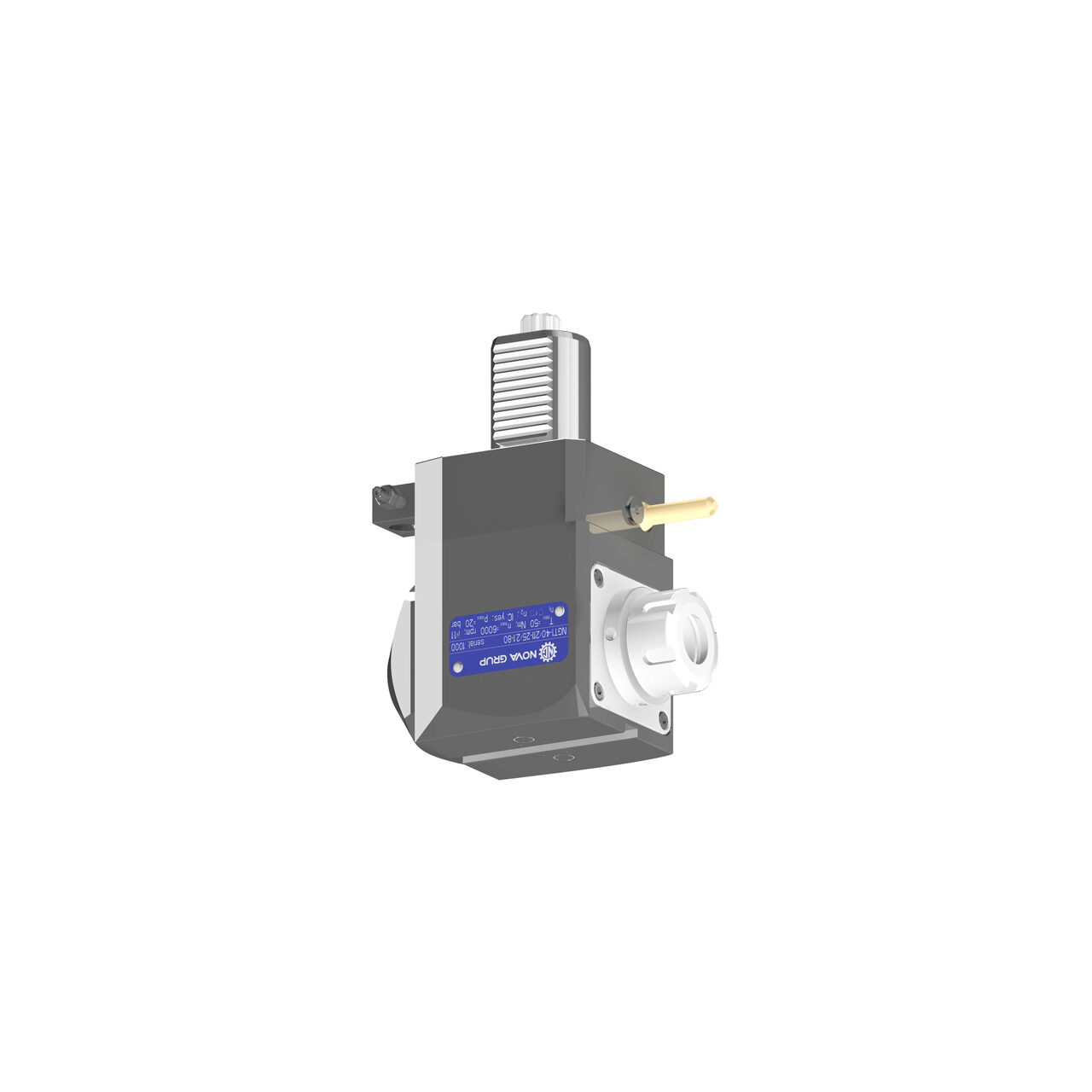

VDI 40. angular tool holder. coupling DIN 5482 Sauter . with 20bar internal cooling
Product details
Product Code: NGT1-40/211-25/2.1-80
Delivery terms
ex-works Deva (Romania)
VDI 40, angular tool holder, coupling DIN 5482, with internal cooling
| Status under request |
DA
|
| PRODUCT CODE |
NGT1-40/211-25/2.1-80
|
| TYPE OF TOOL HOLDER |
LIVE TOOLS
|
| TURRET INTERFACE TYPE |
VDI
|
| SHANK SIZE [MM] |
40
|
| DRIVE COUPLING TYPE |
DIN 5482
|
| BEARING TYPE |
Spindle bearings
|
| PRODUCT TYPE |
ANGULAR
|
| DIRECTION |
RIGHT HAND
|
| HEIGHT [MM] |
80
|
| COOLANT |
Internal 20bar
|
| TOOL GRIP TYPE |
ER Collet
|
| TOOL GRIP DIMENSION |
Collet ER25
|
| TRANSMISSION RATIO [I=N1:N2] |
1:1
|
| TORQUE [NM] |
50
|
| Compatible machines |
VOEST > WNC300 VDI40 (DISC)
ANGELINI > BRAVO (DISC)
KERN > CD402 VDI40 (DISC)
WFL > WNC300 VDI40 (DISC)
KERN > DMT VDI40 (DISC)
MONFORTS > RNC5 (DISC)
DMG MORI / GILDEMEISTER > CTX 510 ECO 5482 (DISC)
COLCHESTER > T8M (DISC)
KERN > CD650 (DISC)
SAEILO > CONTUR TSL-500 (DISC)
COLCHESTER > TORNADO 220M (DISC)
COLCHESTER > TSL500 (DISC)
TRENS > SBL500 DIN5482 (DISC)
MONFORTS > RNC400 (DISC)
DMG MORI / GILDEMEISTER > CTX 400 SCHAFT 40 (DISC)
TRAUB > TNA 400 (DISC)
ANGELINI > DG13 CNC (DISC)
DMG MORI / GILDEMEISTER > CTX 500 (DISC)
MAGDEBURGER > M300 (DISC)
CAMPRO > CPL20MC (DISC)
MONFORTS > RNC500 (DISC)
DMG MORI / GILDEMEISTER > MD5IT (DISC)
CONTUR > TSL500 (DISC)
DMG MORI / GILDEMEISTER > CTX 600 SCHAFT 40 (DISC)
DOOSAN > S390LM (DISC)
SAUTER > VDI40 5482 (DISC)
WFL > WNC400 (DISC)
DMTG INGERSOLL > I40 (DISC)
VOEST > WNC400 (DISC)
HEYLIGENSTAEDT > HEYNUMAT 5 (DISC)
MONFORTS > RNC4 (DISC)
|
