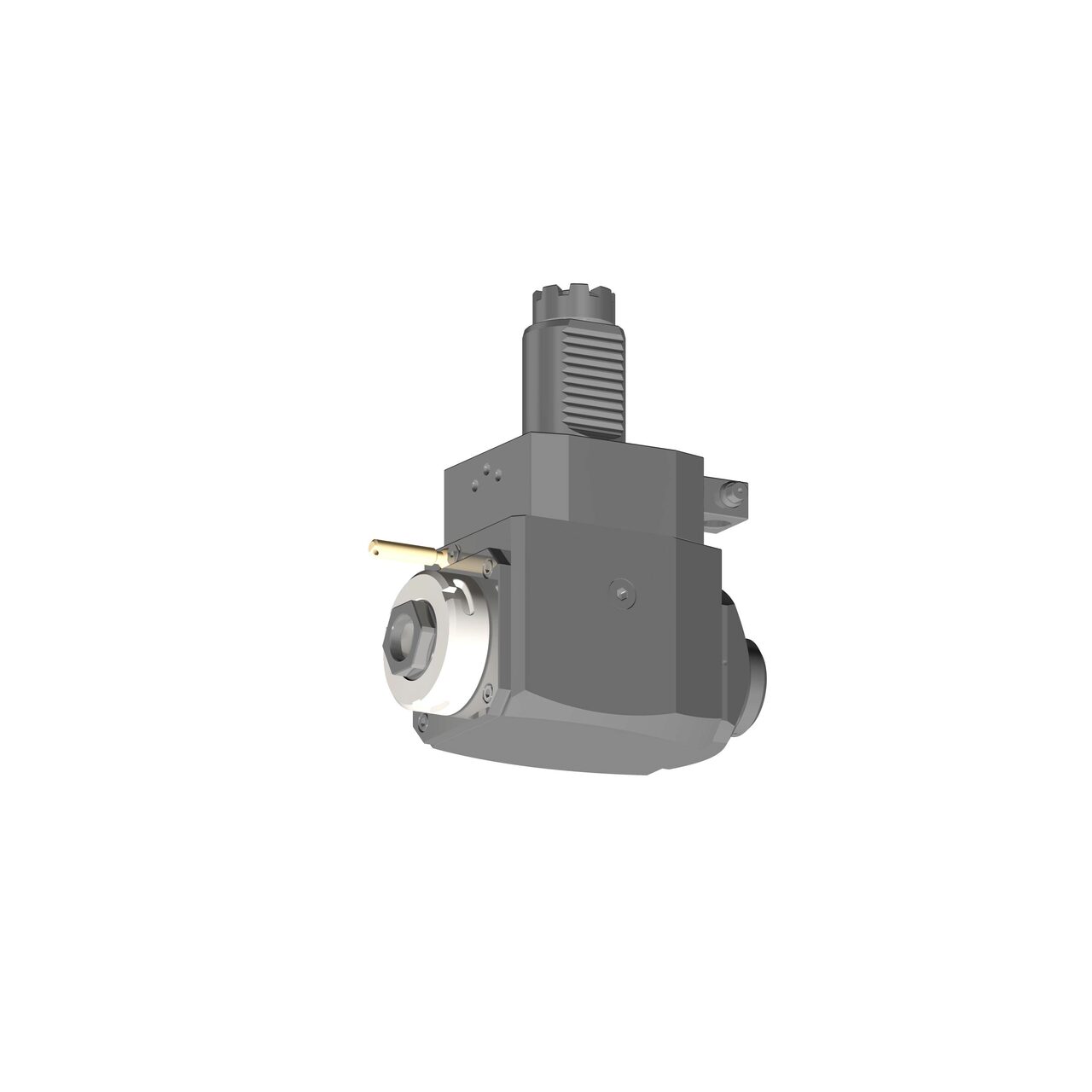

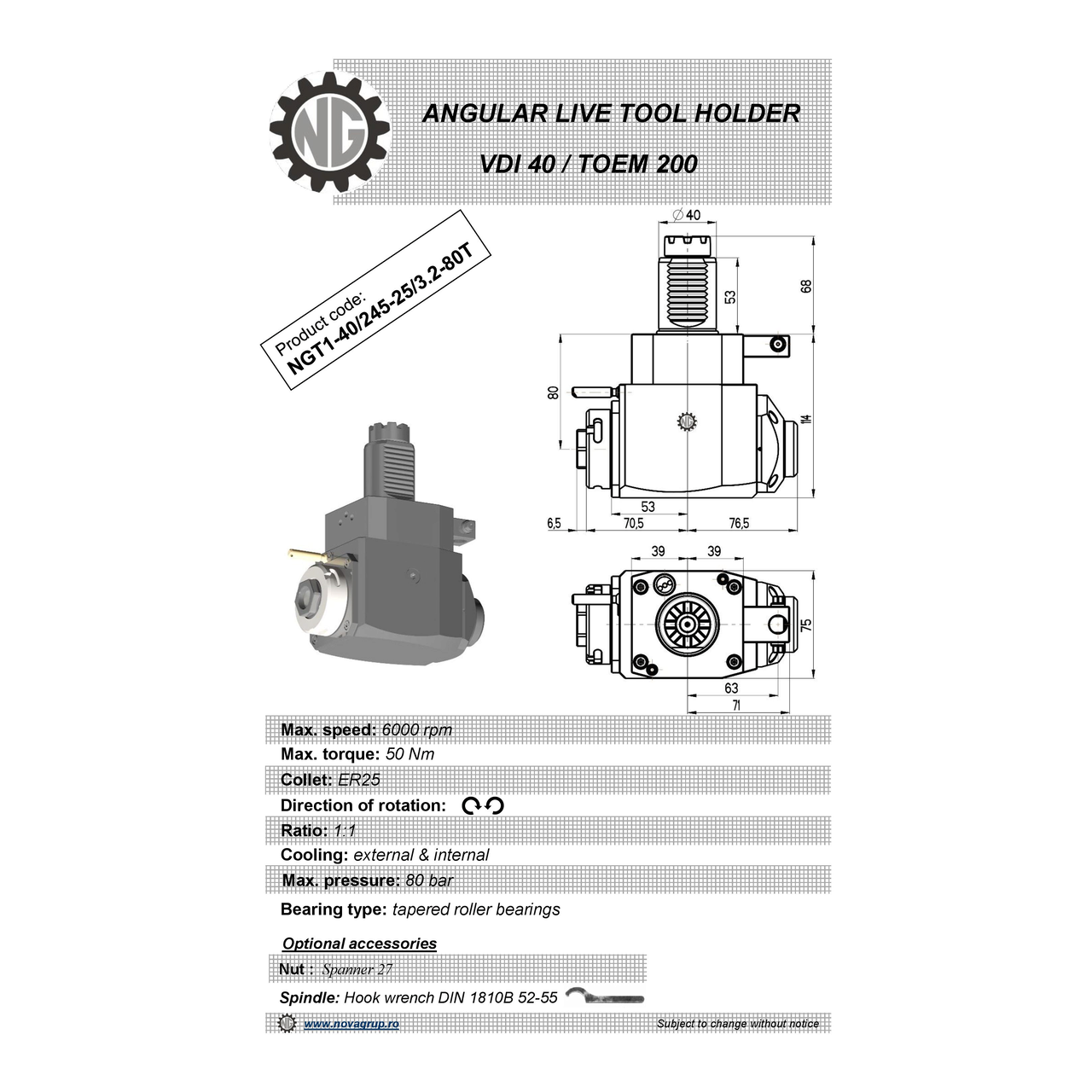

VDI 40, angular tool holder, coupling TOEM, with 80bar internal cooling, with tapered roller bearings
Delivery terms
ex-works Deva (Romania)
VDI 40, angular tool holder, coupling TOEM, with 80bar internal cooling, with tapered roller bearings
| PRODUCT CODE |
NGT1-40/245-25/3.2-80T
|
| TURRET INTERFACE TYPE |
VDI
|
| SHANK SIZE [mm] |
40
|
| DRIVE COUPLING TYPE |
BARUFFALDI / TOEM
|
| BEARING TYPE |
Tapered roller bearings
|
| PRODUCT TYPE |
ANGULAR
|
| COOLANT |
Internal 80bar
|
| TOOL GRIP DIMENSION |
Collet ER25
|
| TOOL GRIP TYPE |
COLLET
|
| TRANSMISSION RATIO [i=n1:n2] |
1:1
|
| TORQUE [Nm] |
50
|
| HEIGHT [mm] |
80
|
| Direction |
LEFT HAND
|
| Compatible machines |
TOPPER > TNL 120 ALS (STAR)
|
