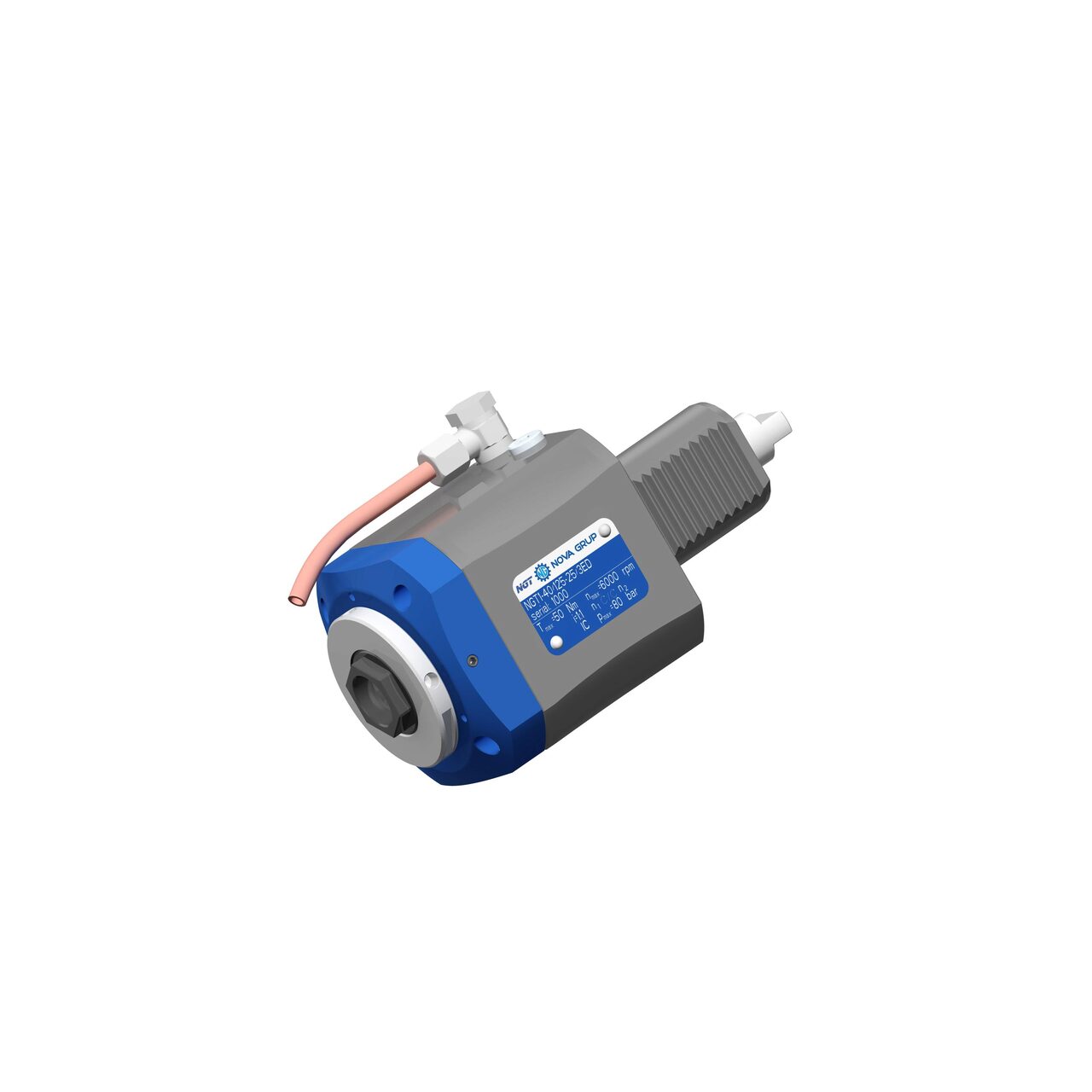

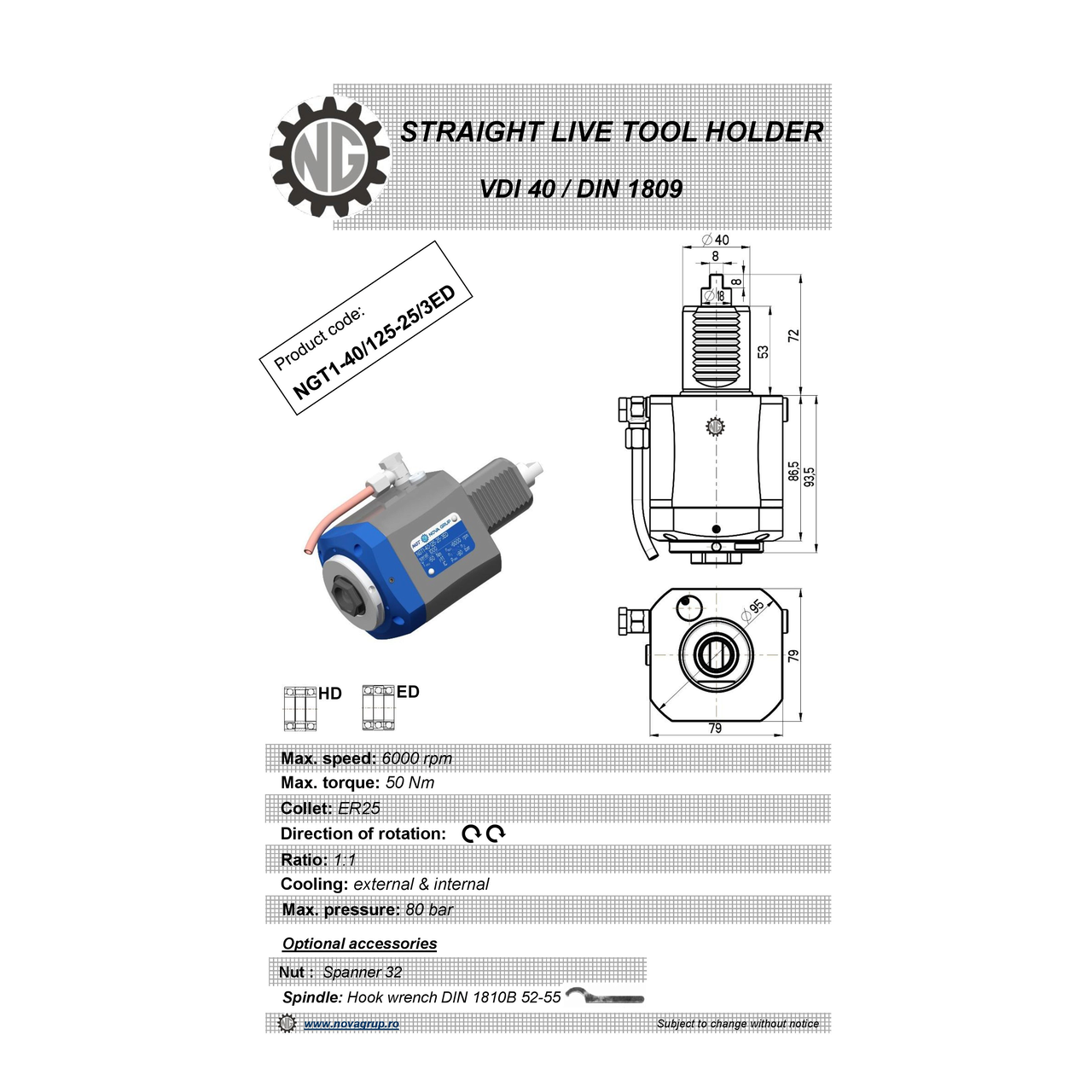

VDI 40, straight tool holder, coupling DIN 1809, with 80bar internal cooling, extreme duty
Delivery terms
ex-works Deva (Romania)
VDI 40, straight tool holder, coupling DIN 1809, with 80bar internal cooling, extreme duty
| PRODUCT CODE |
NGT1-40/125-25/3ED
|
| NEW PRODUCTS |
EXTREME LIVE TOOLHOLDERS
|
| TURRET INTERFACE TYPE |
VDI
|
| SHANK SIZE [mm] |
40
|
| DRIVE COUPLING TYPE |
DIN 1809
|
| BEARING TYPE |
High Speed Ball Spindle
|
| PRODUCT TYPE |
STRAIGHT
|
| COOLANT |
Internal 80bar
|
| TOOL GRIP DIMENSION |
Collet ER25
|
| TOOL GRIP TYPE |
COLLET
|
| TRANSMISSION RATIO [i=n1:n2] |
1:1
|
| TORQUE [Nm] |
50
|
| Compatible machines |
Alex-Tech > VT28-28BL (DISC)
BATLIBOI > Sprint 25TC (DISC)
Biglia > B111 VDI40 (DISC)
Biglia > B200 VDI40 (DISC)
Biglia > B56 VDI40 (DISC)
Chevalier > FCL-1028MC (DISC)
CHING HUNG > CL260 (DISC)
CHING HUNG > CL38 (DISC)
Cincinnati > HTC200 (DISC)
Cincinnati > HTC250 (DISC)
CNC Takang > TNC-2000DST (DISC)
CNC Takang > TNC-30N (DISC)
Daewoo > PUMA 200 MS (DISC)
Daewoo > PUMA 250 MS (DISC)
Duplomatic > VDI40 1809 (DISC)
EMCO > ET500 (DISC)
Fadal > PTC250 (DISC)
Fair Friend > FTC-20 (DISC)
Fair Friend > FTC-30 (DISC)
Focus CNC > FCL 300MC (DISC)
Hardinge > Talent 10/78 (DISC)
Hitachi Seiki > CS20/CS25 (DISC)
Hitachi Seiki > Hicell 23S (DISC)
Hitachi Seiki > HT 200/250 (DISC)
Hitachi Seiki > HT 20S (DISC)
Hitachi Seiki > HT 23R (DISC)
Hitachi Seiki > HT 25G (DISC)
HURCO > TMM10 (STAR)
HURCO > TMM10i (STAR)
HURCO > TMX10 MY/MYS 1809 (STAR)
HURCO > TMX8 MY/MYS 1809 (STAR)
Hyundai WIA > Hit 20M/200M/250M (DISC)
Kovosvit MAS > S50 VDI40 (DISC)
Leadwell > LTC 25 BLM (DISC)
Leadwell > T8 M (DISC)
Magdeburger > M120 (DISC)
Romi > G30M 1809 (DISC)
Romi > GL250M (DISC)
Romi > GL280M (DISC)
Romi > GL300M (DISC)
Saeilo > Contur LT-20 MC (DISC)
SOMAB > Transmab 500 (DISC)
Taksan > TTC630 Duplomatic (DISC)
TOPPER > TB 25YMBC DIN1809 (STAR)
YCM > GT250 MA/LMA/MB/LMB (DISC)
YCM > GT300 MA/LMA/MB/LMB (DISC)
|
