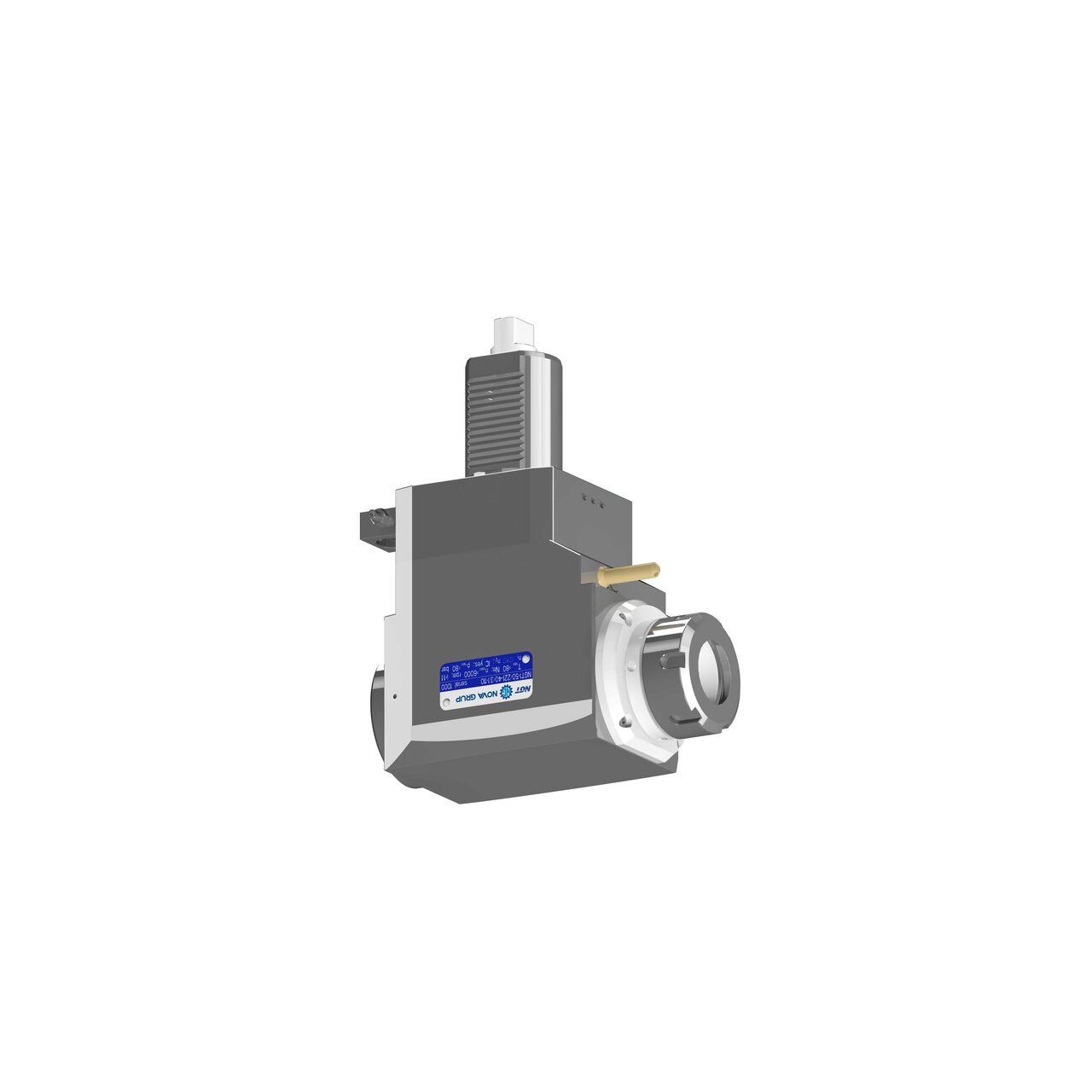

VDI 50, angular tool holder, coupling DIN 1809, with 80bar internal cooling
Delivery terms
ex-works Deva (Romania)
VDI 50, angular tool holder, coupling DIN 1809, with 80bar internal cooling
| PRODUCT CODE |
NGT1-50/221-40/3.1-110
|
| TURRET INTERFACE TYPE |
VDI
|
| SHANK SIZE [mm] |
50
|
| DRIVE COUPLING TYPE |
DIN 1809
|
| BEARING TYPE |
High Speed Ball Spindle
|
| PRODUCT TYPE |
ANGULAR
|
| COOLANT |
Internal 80bar
|
| TOOL GRIP DIMENSION |
Collet ER40
|
| TOOL GRIP TYPE |
COLLET
|
| TRANSMISSION RATIO [i=n1:n2] |
1:1
|
| TORQUE [Nm] |
80
|
| HEIGHT [mm] |
110
|
| Direction |
RIGHT HAND
|
| Compatible machines |
Cacta > CAT500 (DISC)
Daewoo > PUMA 350 M (DISC)
Daewoo > PUMA 400 M (DISC)
Duplomatic > VDI50 1809 (DISC)
EMCO > ET700 (DISC)
EMCO > ET800 (DISC)
EMCO > Maxx turn 110 (DISC)
HURCO > TMM12i (STAR)
Kovosvit MAS > KL 435 (DISC)
Kovosvit MAS > SP 430 (DISC)
Kovosvit MAS > SP 630 (DISC)
SOMAB > Transmab 850 (DISC)
Tajmac-ZPS > Transmab 600 (DISC)
|
