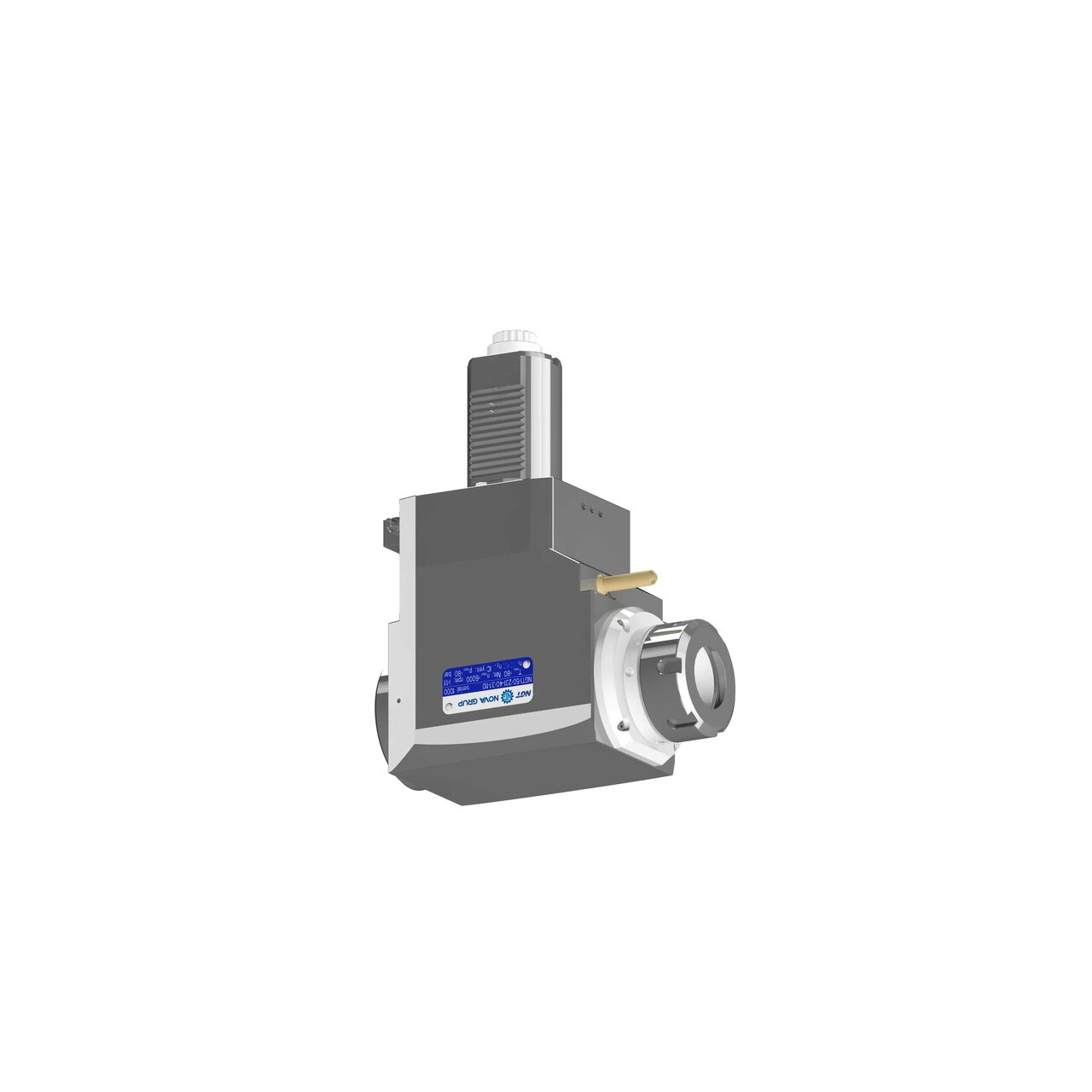

VDI 50, angular tool holder, coupling DIN 5480, with 80bar internal cooling
Delivery terms
ex-works Deva (Romania)
VDI 50, angular tool holder, coupling DIN 5480, with 80bar internal cooling
| PRODUCT CODE |
NGT1-50/231-40/3.1-110
|
| TURRET INTERFACE TYPE |
VDI
|
| SHANK SIZE [mm] |
50
|
| DRIVE COUPLING TYPE |
DIN 5480
|
| BEARING TYPE |
Spindle bearings
|
| PRODUCT TYPE |
ANGULAR
|
| COOLANT |
Internal 80bar
|
| TOOL GRIP DIMENSION |
Collet ER40
|
| TOOL GRIP TYPE |
COLLET
|
| TRANSMISSION RATIO [i=n1:n2] |
1:1
|
| TORQUE [Nm] |
80
|
| HEIGHT [mm] |
110
|
| Direction |
RIGHT HAND
|
| Compatible machines |
FAC > FCT700 (DISC)
DMG MORI / Gildemeister > CTX 600 linear (DISC)
DMG MORI / Gildemeister > CTX 620 linear (DISC)
DMG MORI / Gildemeister > CTX beta 2000 VDI50 (DISC)
DMG MORI / Gildemeister > CTX gamma 1250 VDI50 (DISC)
DMG MORI / Gildemeister > CTX gamma 2000 VDI50 (DISC)
DMG MORI / Gildemeister > ecoTURN 650 (DISC)
Duplomatic > VDI50 5480 (DISC)
EMCO > Maxx turn 110 (DISC)
FMS > NDM 40 (STAR)
Graziano > CTX 620 (DISC)
HACO > FCT700 (DISC)
Hessapp > DVH450 left (STAR, VERTICAL)
Romi > G30M VDI50 (DISC)
Romi > G50M (DISC)
Romi > Galaxy 50M (DISC)
Scherer Feinbau > VDZ420 L (STAR, VERTICAL)
Victor > V36 (DISC)
Victor > Vturn 36/40/45/46CV (DIN5480) (STAR)
Victor > Vturn V760CV (STAR)
|
