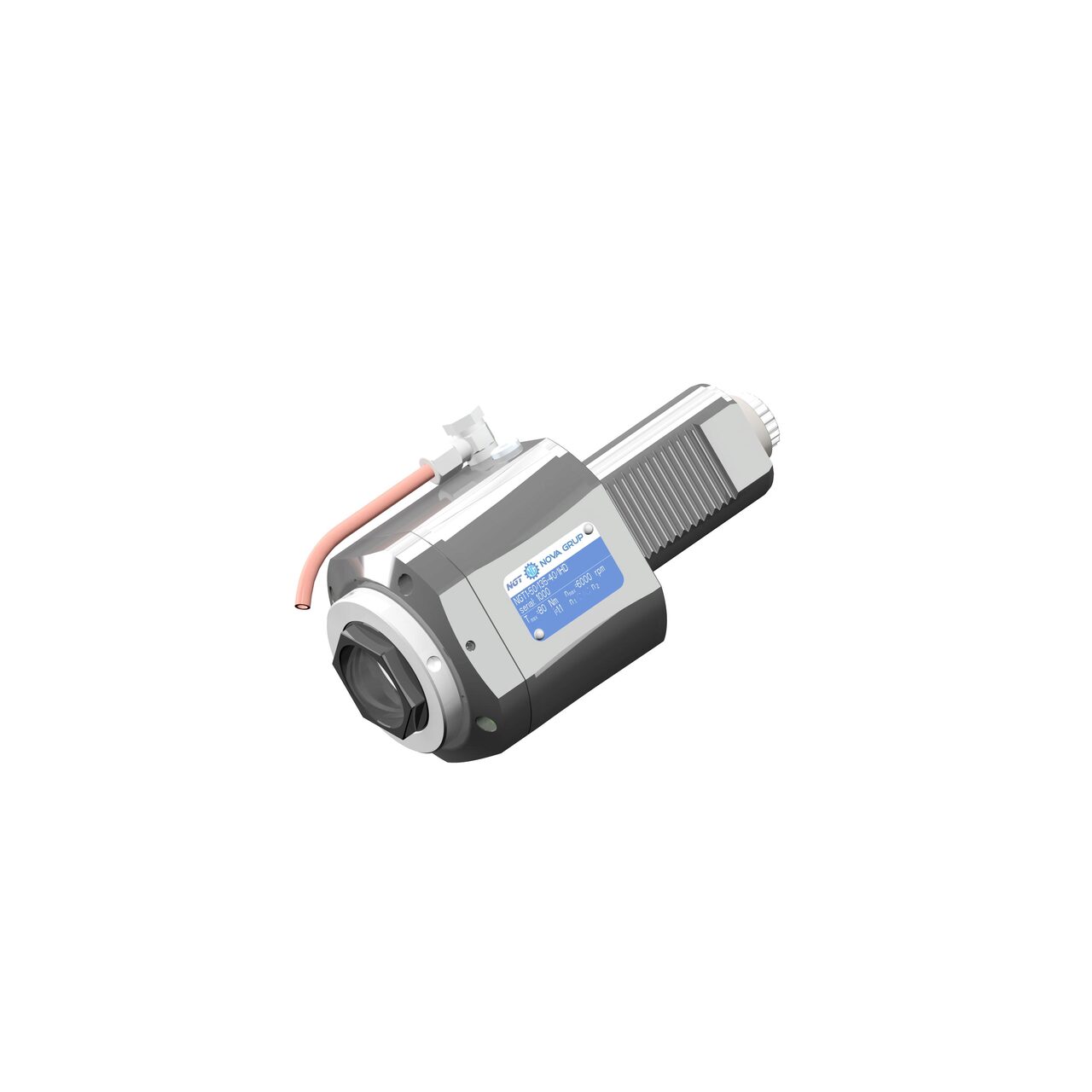

VDI 50, straight tool holder, coupling DIN 5480, no internal cooling, heavy duty
Delivery terms
ex-works Deva (Romania)

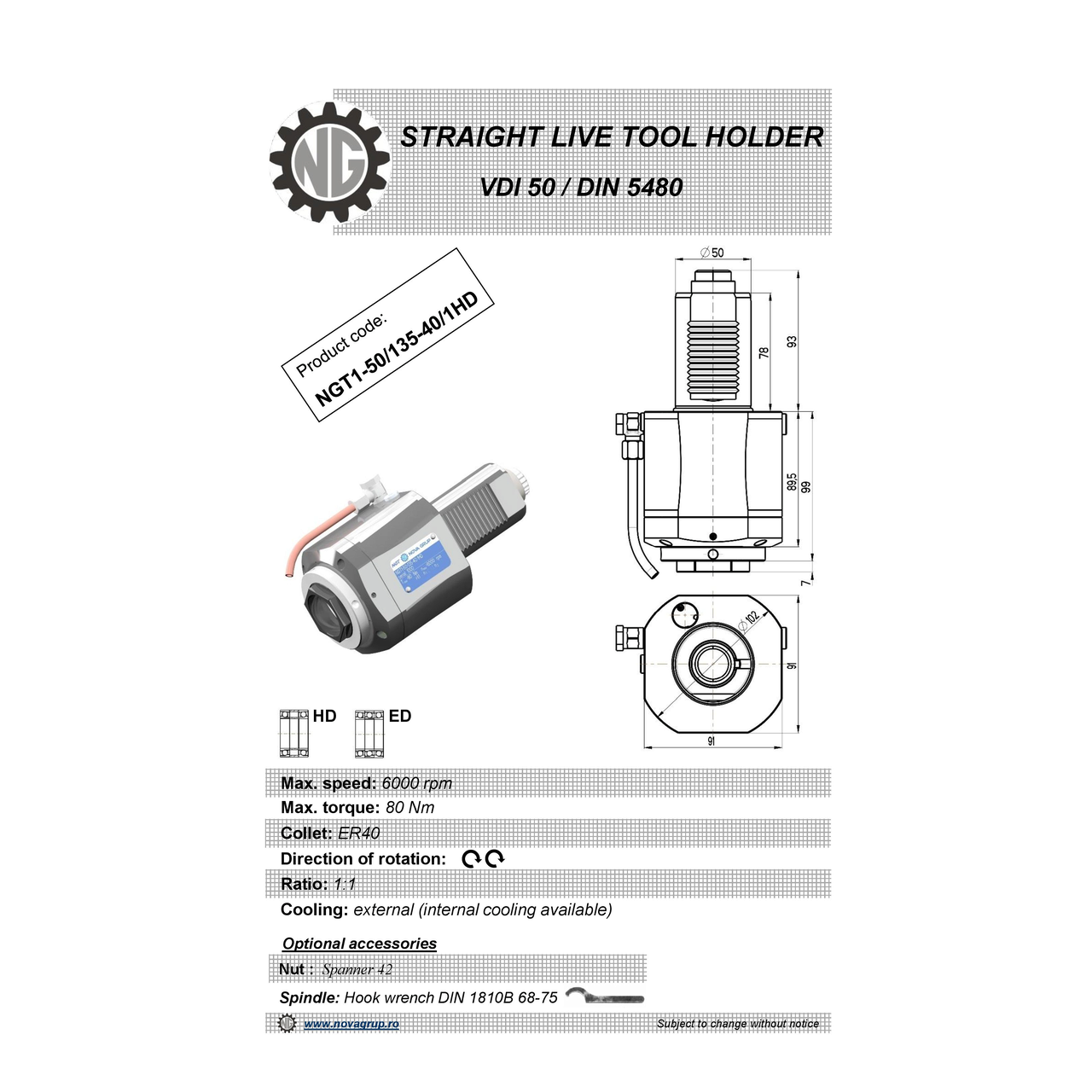

VDI 50, straight tool holder, coupling DIN 5480, no internal cooling, heavy duty
| PRODUCT CODE |
NGT1-50/135-40/1HD
|
| TURRET INTERFACE TYPE |
VDI
|
| SHANK SIZE [mm] |
50
|
| DRIVE COUPLING TYPE |
DIN 5480
|
| BEARING TYPE |
Spindle bearings
|
| PRODUCT TYPE |
STRAIGHT
|
| COOLANT |
External Coolant
|
| TOOL GRIP DIMENSION |
Collet ER40
|
| TOOL GRIP TYPE |
COLLET
|
| TRANSMISSION RATIO [i=n1:n2] |
1:1
|
| TORQUE [Nm] |
80
|
| HEIGHT [mm] |
0
|
| Compatible machines |
FAC > FCT700 (DISC)
DMG MORI / Gildemeister > CTV 400 linear (STAR)
DMG MORI / Gildemeister > CTX 600 linear (DISC)
DMG MORI / Gildemeister > CTX 620 linear (DISC)
DMG MORI / Gildemeister > CTX beta 2000 VDI50 (DISC)
DMG MORI / Gildemeister > CTX gamma 1250 VDI50 (DISC)
DMG MORI / Gildemeister > CTX gamma 1250 VDI50 (STAR)
DMG MORI / Gildemeister > CTX gamma 2000 VDI50 (DISC)
DMG MORI / Gildemeister > ecoTURN 650 (DISC)
Duplomatic > VDI50 5480 (DISC)
EMCO > Maxx turn 110 (DISC)
FMS > NDM 40 (STAR)
Graziano > CTX 620 (DISC)
HACO > FCT700 (DISC)
Hessapp > DVH450 left (STAR, VERTICAL)
Pittler > PV 630 (STAR)
Romi > G30M VDI50 (DISC)
Romi > G50M (DISC)
Romi > Galaxy 50M (DISC)
Sauter > VDI50 5480 (DISC)
Scherer Feinbau > VDZ420 L (STAR, VERTICAL)
Scherer Feinbau > VDZ420 R (STAR, VERTICAL)
Victor > V36 (DISC)
Victor > Vturn 36/40/45/46CV (DIN5480) (STAR)
Victor > Vturn V760CV (STAR)
|
