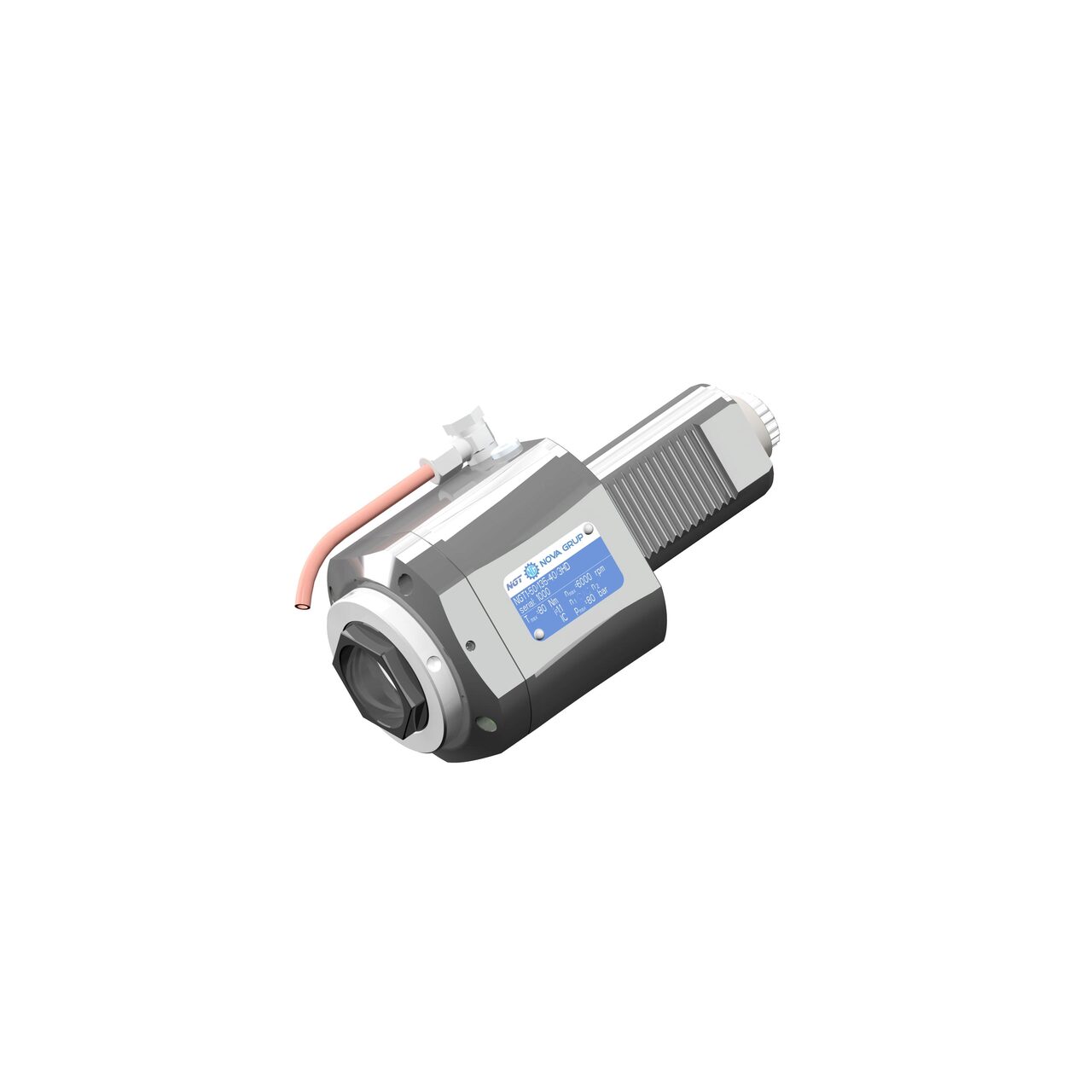

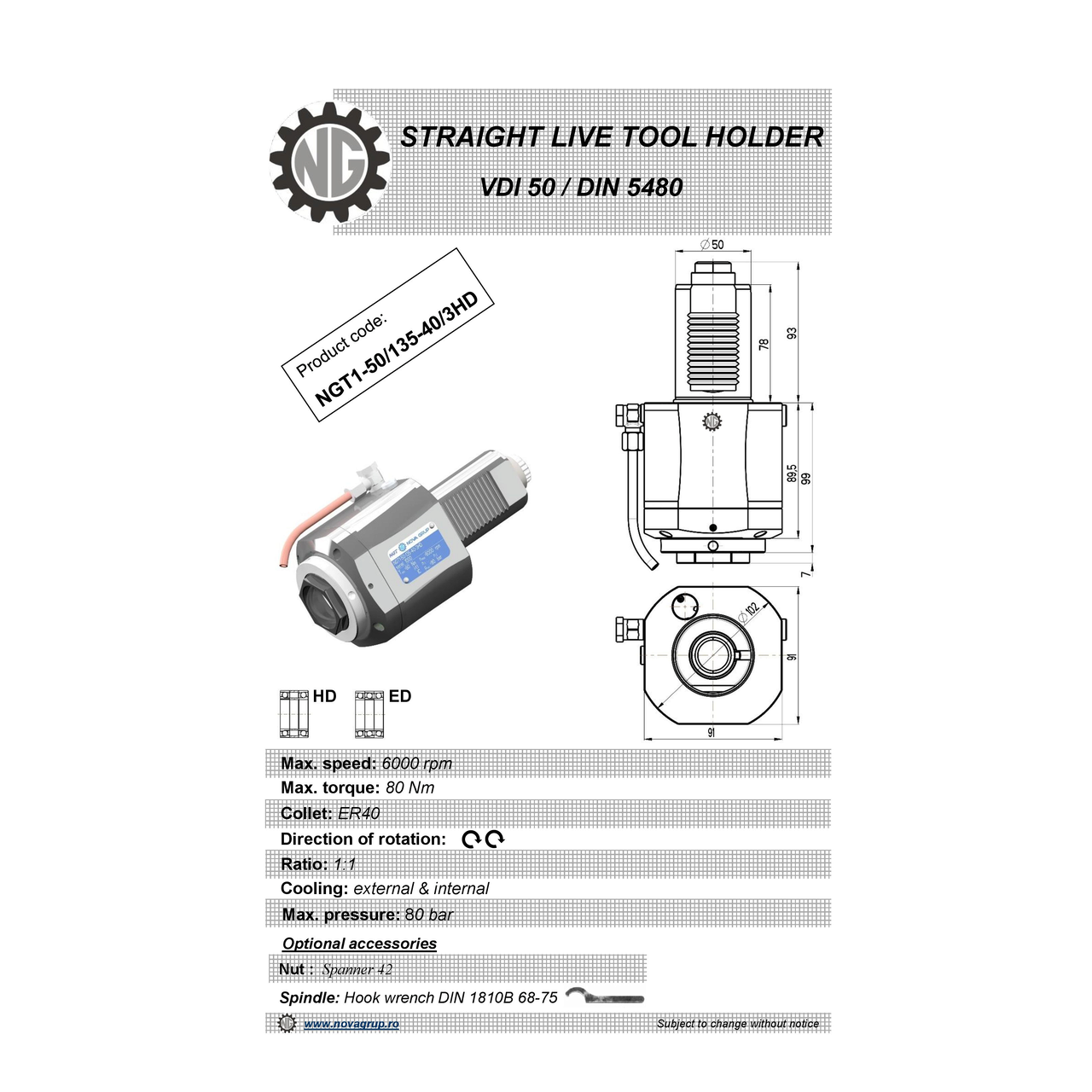

VDI 50. straight tool holder. coupling DIN 5480 Sauter synchron . with 80bar internal cooling. heavy duty
Delivery terms
ex-works Deva (Romania)
VDI 50, straight tool holder, coupling DIN 5480, with 80bar internal cooling, heavy duty
| Status under request |
DA
|
| PRODUCT CODE |
NGT1-50/135-40/3HD
|
| TYPE OF TOOL HOLDER |
LIVE TOOLS
|
| TURRET INTERFACE TYPE |
VDI
|
| SHANK SIZE [mm] |
50
|
| DRIVE COUPLING TYPE |
DIN 5480
|
| BEARING TYPE |
Spindle bearings
|
| PRODUCT TYPE |
STRAIGHT
|
| HEIGHT [mm] |
0
|
| COOLANT |
Internal 80bar
|
| TOOL GRIP TYPE |
ER Collet
|
| TOOL GRIP DIMENSION |
Collet ERA40
|
| TRANSMISSION RATIO [i=n1:n2] |
1:1
|
| TORQUE [Nm] |
80
|
| Compatible machines |
PITTLER > PV 630 (STAR)
DMG MORI / GILDEMEISTER > CTX BETA 2000 VDI50 (DISC)
DMG MORI / GILDEMEISTER > ECOTURN 650 (DISC)
GRAZIANO > CTX 620 (DISC)
VICTOR > V36 (DISC)
EMCO > MAXX TURN 110 (DISC)
DMG MORI / GILDEMEISTER > CTX GAMMA 2000 VDI50 (DISC)
FAC > FCT700 (DISC)
HACO > FCT700 (DISC)
ROMI > G30M VDI50 (DISC)
SAUTER > VDI50 5480 (DISC)
ROMI > GALAXY 50M (DISC)
SCHERER FEINBAU > VDZ420 R (STAR. VERTICAL)
SCHERER FEINBAU > VDZ420 L (STAR. VERTICAL)
DMG MORI / GILDEMEISTER > CTV 400 LINEAR (STAR)
VICTOR > VTURN V760CV (STAR)
ROMI > G50M (DISC)
DUPLOMATIC > VDI50 5480 (DISC)
DMG MORI / GILDEMEISTER > CTX 600 LINEAR (DISC)
HESSAPP > DVH450 LEFT (STAR. VERTICAL)
DMG MORI / GILDEMEISTER > CTX 620 LINEAR (DISC)
SAUTER > VDI50 5480 (STAR)
FMS > NDM 40 (STAR)
DMG MORI / GILDEMEISTER > CTX GAMMA 1250 VDI50 (STAR)
VICTOR > VTURN 36/40/45/46CV (DIN5480) (STAR)
DMG MORI / GILDEMEISTER > CTX GAMMA 1250 VDI50 (DISC)
|
