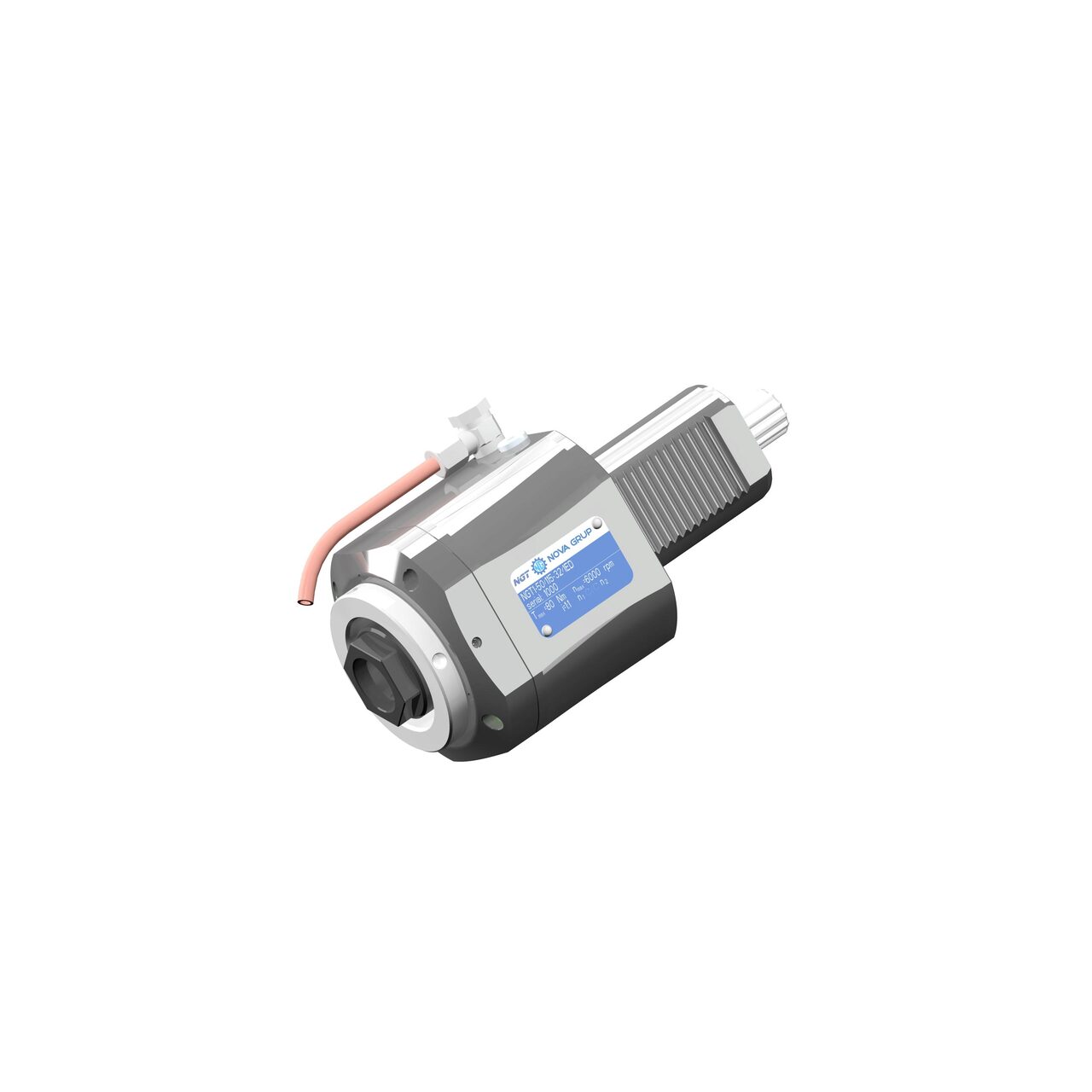

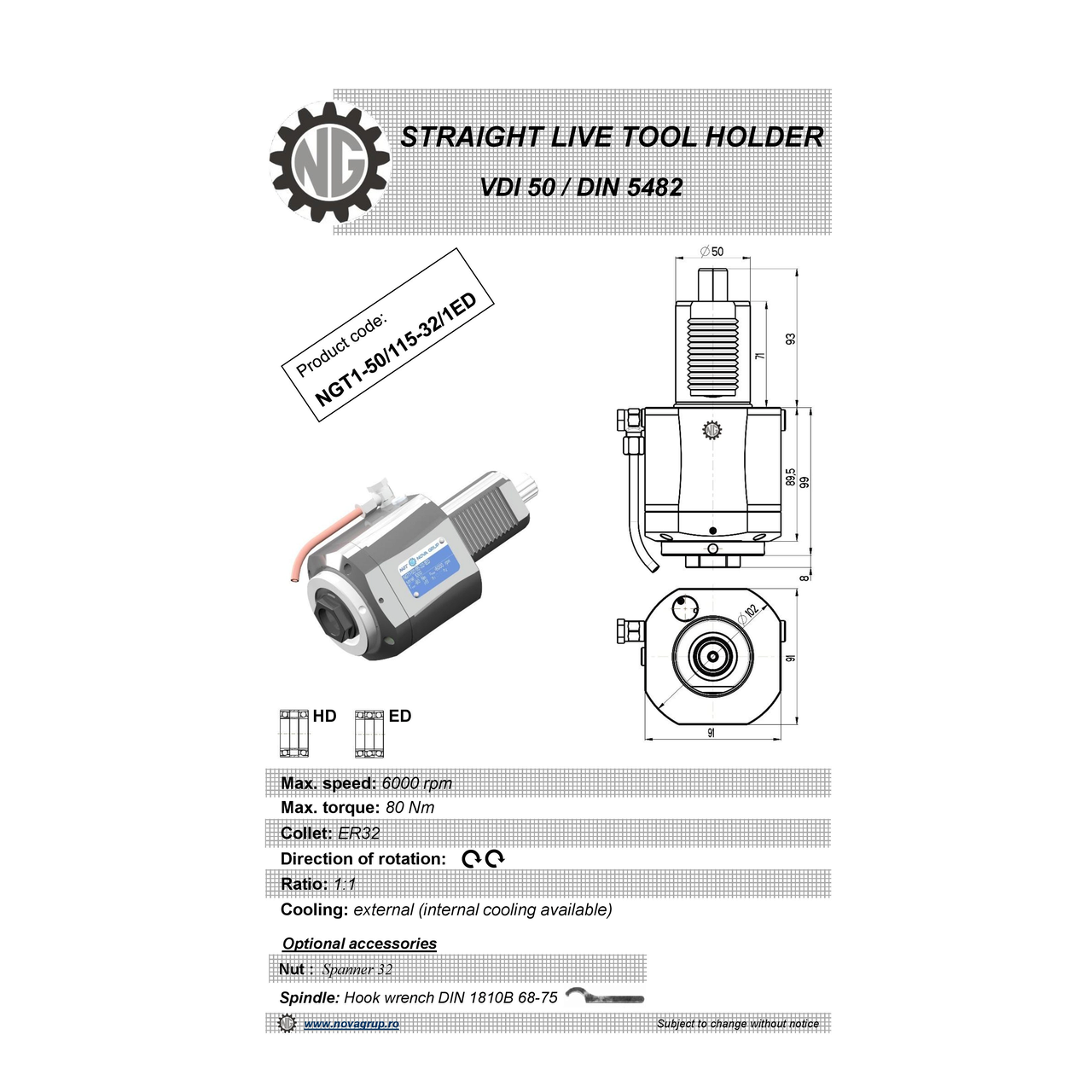

VDI 50, straight tool holder, coupling DIN 5482, no internal cooling, extreme duty
Delivery terms
ex-works Deva (Romania)
VDI 50, straight tool holder, coupling DIN 5482, no internal cooling, extreme duty
| PRODUCT CODE |
NGT1-50/115-32/1ED
|
| TURRET INTERFACE TYPE |
VDI
|
| SHANK SIZE [mm] |
50
|
| DRIVE COUPLING TYPE |
DIN 5482
|
| BEARING TYPE |
High Speed Ball Spindle
|
| PRODUCT TYPE |
STRAIGHT
|
| COOLANT |
External Coolant
|
| TOOL GRIP DIMENSION |
Collet ER32
|
| TOOL GRIP TYPE |
COLLET
|
| TRANSMISSION RATIO [i=n1:n2] |
1:1
|
| TORQUE [Nm] |
80
|
| HEIGHT [mm] |
0
|
| Compatible machines |
Avia > Aviaturn 63M (DISC)
Contur > HSL700 (DISC)
DMG MORI / Gildemeister > CLX 750 V1/V3/V4 (DISC)
DMG MORI / Gildemeister > CTX 600 (DISC)
DMG MORI / Gildemeister > GT 700 (DISC)
Graziano > CTX 700 (DISC)
Hessapp > DVH450 right (STAR, VERTICAL)
Hessapp > DVT630 5482 (STAR)
Heyligenstaedt > Heynumat 15 (DISC)
Magdeburger > M400 Schaft50 (DISC)
Magdeburger > M500 (DISC)
Maho Graziano > GR500 VDI50 (DISC)
Maho Graziano > MT600 (DISC)
Monforts > RNC600 (DISC)
Monforts > RNC700 MNC 1000 (DISC)
Niles > N30 VDI50 (DISC)
Saeilo > Contur HSL-700 (DISC)
Sauter > VDI50 5482 (DISC)
Voest > WNC500 (DISC)
WFL > WNC500 (DISC)
|
