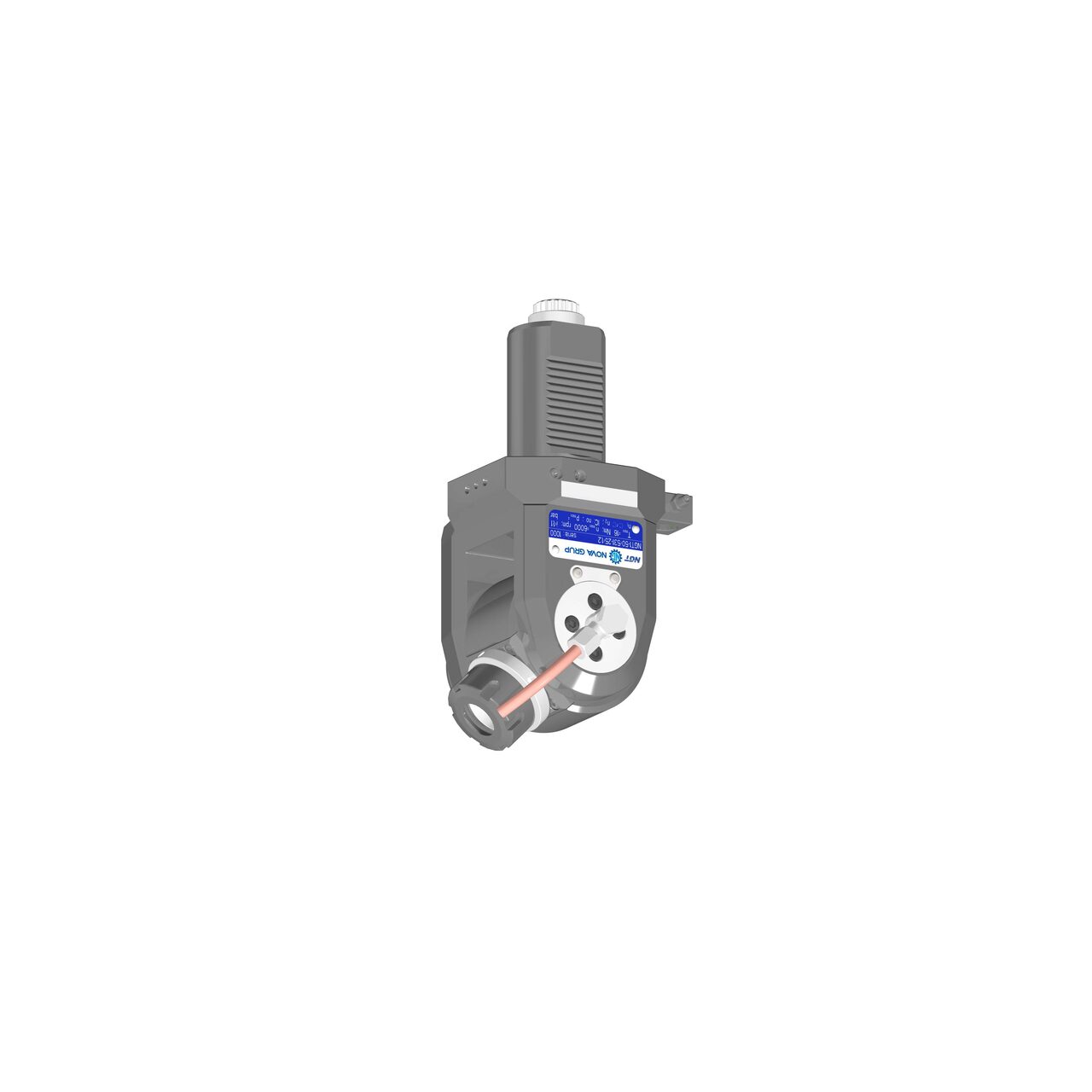

VDI 50, variable angle tool holder, coupling DIN 5480, no internal cooling
Delivery terms
ex-works Deva (Romania)
VDI 50, variable angle tool holder, coupling DIN 5480, no internal cooling
| PRODUCT CODE |
NGT1-50/531-25/1.2
|
| TURRET INTERFACE TYPE |
VDI
|
| SHANK SIZE [mm] |
50
|
| DRIVE COUPLING TYPE |
DIN 5480
|
| BEARING TYPE |
High Speed Ball Spindle
|
| PRODUCT TYPE |
VARIABLE ANGLE
|
| COOLANT |
External Coolant
|
| TOOL GRIP DIMENSION |
Collet ER25
|
| TOOL GRIP TYPE |
COLLET
|
| TRANSMISSION RATIO [i=n1:n2] |
1:1
|
| TORQUE [Nm] |
16
|
| Direction |
LEFT HAND
|
| Compatible machines |
DMG MORI / Gildemeister > CTV 400 linear (STAR)
DMG MORI / Gildemeister > CTX gamma 1250 VDI50 (STAR)
FMS > NDM 40 (STAR)
Pittler > PV 630 (STAR)
Sauter > VDI50 5480 (DISC)
Sauter > VDI50 5480 (STAR)
Scherer Feinbau > VDZ420 R (STAR, VERTICAL)
|
